product Image
무대제어 시스템
Model Name
-
Series
무대 제어 시스템
Data
-
Manufacturer information
provider logo
HIGEN MOTOR

Motor, Servo Motor, Servo Drive and Motion Control System Manufacturer

Problem with product info?
Update request
Manufacturer
HIGEN MOTOR
Brand
-
SKU
126818
Product Name
무대제어 시스템
Model Name
-
Size
-
Weight
-
Product Details

특징

- EtherCAT 고속 네트워크(100Mbps) 통신 구성

- 서보 드라이브 통신 이중화(Redundancy) 구현

- 모션 콘트롤러 이중화 및 백업 시스템 구현

- 서버(PC) 및 콘솔 이중화 및 백업 시스템 구현

- 저소음(60dB이하) 및 정지토크 200% 전자식 브레이크 적용

- 기계식 절대치 엔코더 적용

- 사용자 편의 위주의 맞춤형 콘솔 제작

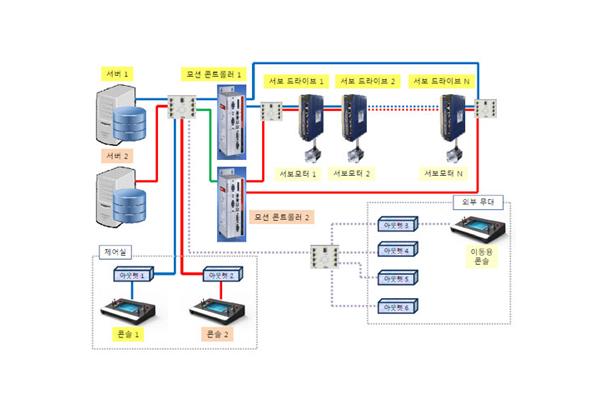

시스템 구성도




적용 사례

[국립극장 달오름 극장 리모델링]

2014. 2. 19 재개관 및 숙영낭자전 공연
상부 : 배튼수 41개, 하부 : 리프트 2개
객석수 450석
면막 : 600kg, 60m/min, 15kW, 2000rpm, 1ea
장치봉 : 500kg, 60m/min, 11kW, 2000rpm, 38ea
객석 장치봉 : 500kg, 18m/min, 5.5kW, 2000rpm, 2ea
통신 : EtherCAT(100Mbps), 100m, Redundancy, 이중화




HIGEN MOTOR
Motor, Servo Motor, Servo Drive and Motion Control System Manufacturer
Since its inception as LG Electronics' motor business unit in 1963, HIGEN RNM has consistently manufactured and sold motors, inheriting 60 years of technology and experience. Shortly after becoming an independent corporation in 2008, we invested in a motor parts factory in Qingdao, China and established a production system that combines the cost competitiveness of our Chinese factory with the technological competitiveness of our headquarters in Changwon, Korea, securing competitiveness in the general motor market early on. Anticipating that the explosive, high-speed growth of the robotics and electric mobility sectors is inevitable to address the shocks to the global economy from mega-trends such as demographic changes and global warming, we have consistently invested 4.3% of our total sales and 30% of the sales in these sectors in R&D and workforce under the independent corporate system. As a result, in 2021, we were uniquely selected as a "leading company" in the servo motor module sector among the national top 100 core strategic technologies chosen by the Ministry of Trade, Industry and Energy, receiving KRW 12 billion in R&D support and accelerating our technology advancement.
