This product is manufactured by
HITACHI INDUSTRIAL EQUIPMENT SYSTEMS

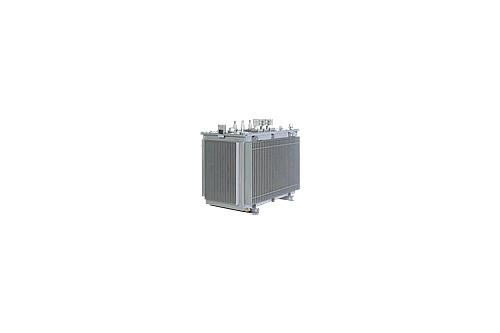

Oil-immersed Transformers (Super Energy Saving Small Type)
Model Name
C Series
Data
Catalog-Hitachi Industrial Equipment Systems-Transformers-Oil-immersed Transformers-C Series
Manufacturer information
HITACHI INDUSTRIAL EQUIPMENT SYSTEMS
Industrial Electric Motor, Variable Freqency Drives, AC Servo, Water Supply Pump, High-pressure Blowers and more
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
HITACHI INDUSTRIAL EQUIPMENT SYSTEMS
Brand
-
SKU
140246
Product Name
Oil-immersed Transformers (Super Energy Saving Small Type)
Model Name
C Series
Size
-
Weight
-
Product Details
Features of Series
- The performance of energy saving is more than top-runner standard value
- Significant decrease of emission of carbon dioxide
- The energy saving effect is greatly different based on the load factor
Because of the low no-load loss and extremely low standby power requirement, the high energy saving effect that suitable for the reality is created. - Reasons for super energy saving and highly effectiveness
Amorphous is exceptional material - Environmental-friendly transformers
Recycling concept of amorphous
Specification
| No. of phases |
Rating Capacity (kVA) |
Frequency | Voltage Specification | Connection | Standard | |
|---|---|---|---|---|---|---|
| Primary (V) |
Secondary (V) |
|||||
| 6kV Standard Model 200V class | ||||||
| Single | 75～500 | 50 or 60 | F6,750-R6,600-F6,450-F6,300-6,150 | 210-105 | For single/ three only |
JEC 2200-1995 JEM 1482-2005 |
| Three | 75～500 | 210 |  |
|||
| 750, 1,000 |  |
|||||
| 6kV Standard Model 400V class | ||||||
| Three | 1,500, 2,000 | 50 | F6,750-R6,600-F6,450-F6,300-6,150 | 420-242 |  (The second |
JEC 2200-1995 JEM 1482-2005 |
| 300～3,000 | 60 | 440-254 | ||||
* The numerical values of the voltage and the rating capacity, etc. of the specification table are Japanese specifications. Please ask us about the specifications for foreign countries.
