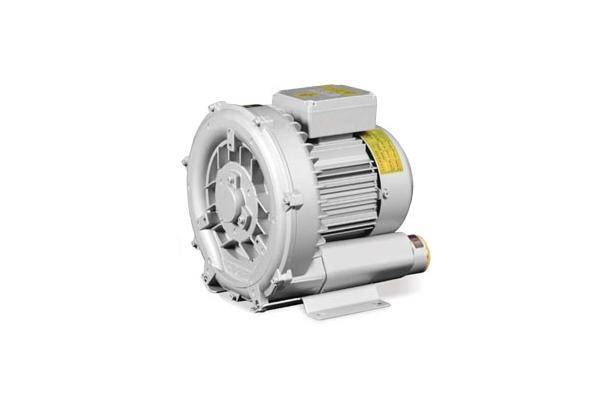

HRB-100 Three Phase [3Ø]
- The allowable Tolerance of dimension is ± 5mm.
- The dimension can be changed for improvement without notice
Performance & Specifications
| HRB-100 | |||
50Hz | 60Hz | |||
PHASE | 3 | |||
MOTOR | HP | 0.5 | 0.7 | |
Kw | 0.4 | 0.5 | ||
PRESSURE | mmAq | 1200 | 1300 | |
VACUUM | mmAq | 1000 | 1200 | |
MAX . AIR FLOW | ㎥/min | 1.3 | 1.4 | |
CURRENT | 220v | A | 2.5 | 2.4 |
380v | A | 1.45 | 1.4 | |
SOUND LEVEL | dB(A) | 64 | ||
MATERIAL | IMPELLER | Aluminum | ||
CASING | Aluminum | |||
BEARING | FRONT | 6203ZC3 | ||
MIDDLE | - | |||
REAR | 6203ZZC3 | |||
WEIGHT | Kg | 11.5 | ||
STARTING CLASS | G | |||
INSULATION CLASS | F | |||
- The performances above were measured under conditions of air temperature 20 °C and atmospheric pressure 1,013mbar.
- The allowable tolerance of the performance value is +10%
- The sound level was measured at a distance of 1.5m with the fully open inlet and outlet ports.
- Anti-corrosive and explosion-proof treatments can be applied upon request.
Performance Curve
- The continuous operation can be made at a point below the curve, however, the continuous operation nearby the rated pressure point may cause a motor breakdown.
In the case of the continuous operation close to the rated pressure, it is strongly recommended to use the pressure-relief valve. See accessories, page 61.
- The allowable tolerance of the performance value is ± 10%
