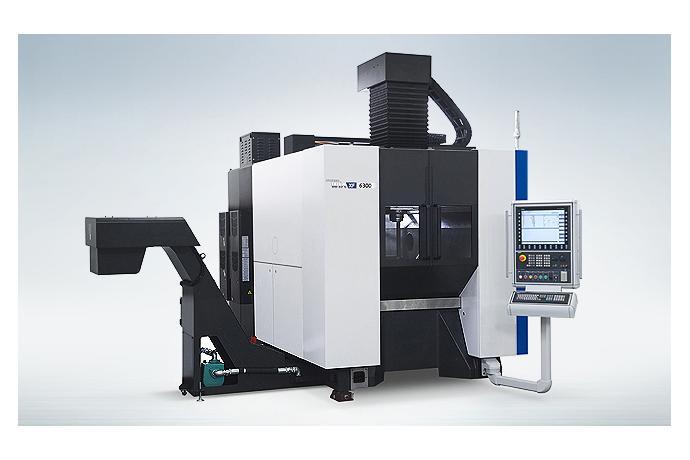

5-Axis M/C
Model Name
XF6300
Series
Vertical Machining Centers
Data
-
Manufacturer information
provider logo
HYUNDAI WIAAutomotive parts, Machine tools, Industrial machinery, Defense, Satellite, Aircraft components, Products R&D and more
Problem with product info?
Update request
Manufacturer
HYUNDAI WIA
Brand
-
SKU
38041
Product Name
5-Axis M/C
Model Name
XF6300
Size
-
Weight
-
Product Details

Features

Increases strength with all-in-one bed & column structure

Machines High-precision parts with x-axis box-in-box structure

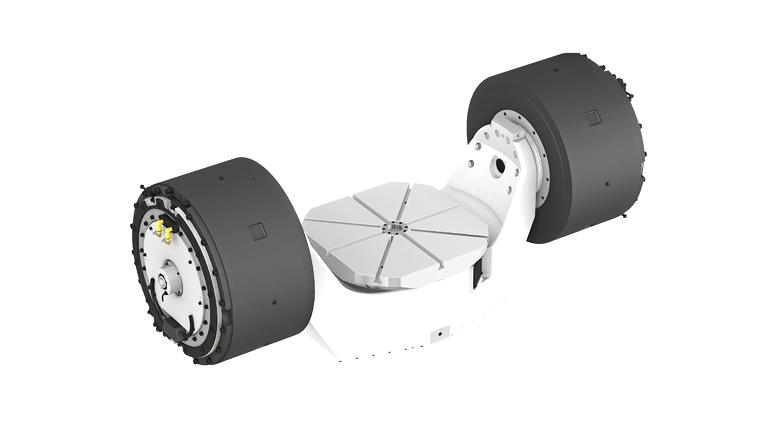

Built-in DDM table

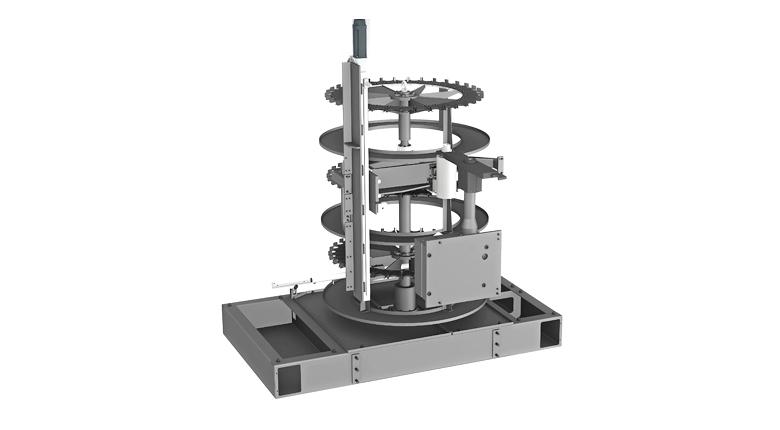

Standard 34-tool ring-type ATC (C-C time: 4.5 sec.)

19" LCD monitor



Specifications

Description Unit XF6300
Table Size mm 630×400
Max. Load Capacity kg 300
Spindle Driving Method - Direct
Spindle Taper - HSK-A63
Spindle RPM r/min 15,000
Spindle Power kw 31/25
Spindle Torque N.m 153/123
Travel(X/Y/Z) mm 650/600/500
Rapid Feed Rate(X/Y/Z) m/min 60/60/60
Slide Type - LM
No. of Tools EA 34
Tool Change Time
(Chip To Chip)
sec 4.5
