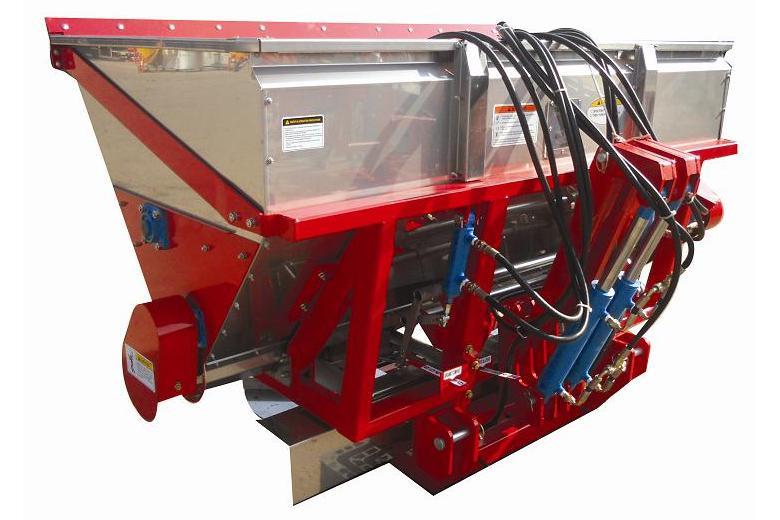

Manufacturer of fertilizer spreader, manure spreader, Mist sprayer and more
* 2 shutters, one spreads organic compost and the other spreads fertilizer
* Bucket function makes loading of organic manure and fertilizer easy
* Convenient to put fertilizer in hopper since it is pulled back
* Two spreading discs cover wider area
* Spread amount is controlled at driver's seat by hydraulic cylinder
* Outlet and disc rotation use hydraulic motor
* Capacity : 1300ℓ
* Hopper material : Stainless steel
* Twin side conveyor : For orchard(optional)
SPECIFICATION
MODEL |
IODD-750J |
IODD-1300J |
IODD-2000J |
IODD-1300H |
CAPACITY(ℓ) |
970 |
1300 |
2000 |
1300 |
N.DISCS |
2 |
2 |
2 |
2 |
WIDTH(mm) |
1800 |
2300 |
2300 |
2300 |
SPREADING |
8~24 |
8~24 |
8~24 |
8~24 |
POWER |
HYDRAULIC |
HYDRAULIC |
HYDRAULIC |
HYDRAULIC |
