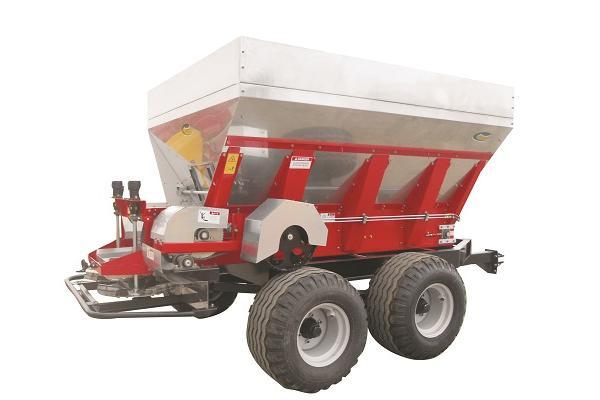

Manufacturer of fertilizer spreader, manure spreader, Mist sprayer and more
* Stainless mesh conveyer : It conveys more exact amount of fertilizer or sand and is more durable than rubber conveyors
* Stainless Steel parts : A hopper, feeding conveyer belt, spinner discs, vanes and prevent plate
* The speed of spinner disc can be controlled by a valve
* Ground driven : As the fertilizer that fed into spinner disc varies according to the rotating speed of a wheel, it is possible to spread evenly regardless of the speed of a vehicle (As a result, the faster a vehicle run the larger amiunt of fertilzier is fed, the slower a vehicle run the smaller amont of fertilizer is fed)
* Hydraulic automatic system : The operation of conveyer and that of fertilizer outlet is linked both are controlled by one hydraulic lever
* Relief valve : Durability of htdraulic motor for spinner disc is improved by installing relief valve (It controls the pressure that occurred when the motor stops and overload)
* Hydraulic outlet : The outlet size can be controlled and fixed as you want
* Windows to see inside fertilizer
* Safety grill : It is optional
* Various tire size is optional : 500/17-15.5, 500/60-22.5, 650/65-30.5
* Hydraulic driven system : optional
SPECIFICATION
MODEL |
VIKING-10000 |
VIKING-10000W |
VIKING-10000S |
VIKING-10000SW |
HOPPER |
8.7㎥ |
8.7㎥ |
8.7㎥ |
8.7㎥ |
NOMINAL |
10Ton |
10Ton |
10Ton |
10Ton |
WIDTH(mm) |
2490 |
2490 |
2800 |
2800 |
HEIGHT(mm) |
2680 |
2650 |
2640 |
2610 |
FEED MESH CHAIN |
500 |
800 |
500 |
800 |
DISC SIZE(mm) |
600 |
800 |
600 |
800 |
AXLES |
TANDEM |
TANDEM |
SINGLE |
SINGLE |
TIRES |
500/50-17 x 4 |
500/50-17 x 4 |
650/65-30.5 x 2 |
650/65-30.5 x 2 |
TYPE |
PULL TYPE |
PULL TYPE |
PULL TYPE |
PULL TYPE |
POWER |
GROUND DRIVEN |
GROUND DRIVEN |
GROUND DRIVEN |
GROUND DRIVEN |
