product Image

TOP

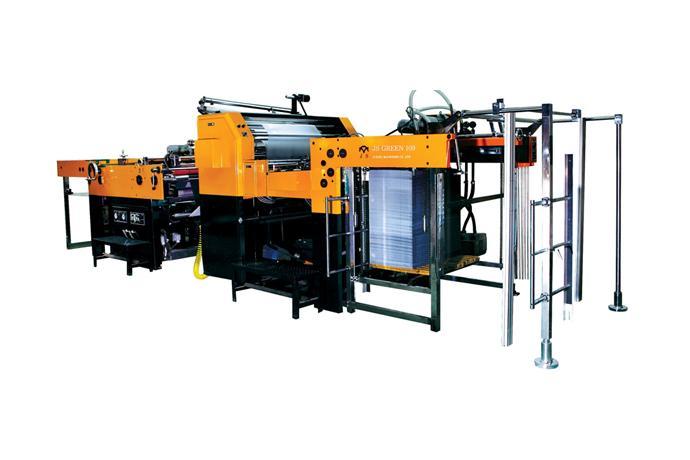

Industrial Laminating Machine
Model Name
JS-GREEN SERIES
Series
Industrial Laminating Machine
Data
-
Manufacturer information
provider logo
JISUNG MACHINERYLaminating machine, Film laminating machine and more
Problem with product info?
Update request
Manufacturer
JISUNG MACHINERY
Brand
-
SKU
30123
Product Name
Industrial Laminating Machine
Model Name
JS-GREEN SERIES
Size
-
Weight
-
Product Details

▣ Glueless, Thermal type (Film: Glueless, Thermal)
◎ Glueless film of PE ingredient is used by exclusive machine.
◎ Heating roller durability and Glueless film reinforce certain size for production.
◎ To feel free to use Thermal and Glueless film for decreasing the production cost.
◎ For using a food packing laminating and box laminating.



JS-GREEN 102
Max.paper size(L) x (W) (mm)720 x 1020
Min.paper size(L) x (W) (mm)260 x 400
Machine speed(m/min)20 ~ 60
Machine size(L) x (W) x (H) (mm)7920 x 1700 x 1785
Paper range(g/㎡)100 ~ 500
Max.pressure(kg/㎠)300
Total Heater volume(kw)18
Power consumption(kw)15
Machine weight(ton)7

JS-GREEN 109
Max.paper size(L) x (W) (mm)788 x 1090
Min.paper size(L) x (W) (mm)320 x 470
Machine speed(m/min)20 ~ 60
Machine size(L) x (W) x (H) (mm)8370 x 1800 x 1785
Paper range(g/㎡)100 ~ 500
Max.pressure(kg/㎠)300
Total Heater volume(kw)18
Power consumption(kw)15
Machine weight(ton)7.5

JS-GREEN 125
Max.paper size(L) x (W) (mm)890 x 1250
Min.paper size(L) x (W) (mm)360 x 470
Machine speed(m/min)20 ~ 60
Machine size(L) x (W) x (H) (mm)8785 x 1950 x 1785
Paper range(g/㎡)100 ~ 500
Max.pressure(kg/㎠)300
Total Heater volume(kw)18
Power consumption(kw)18
Machine weight(ton)8.5




JISUNG MACHINERYLaminating machine, Film laminating machine and more
We are indeed pleased to have this opportunity to introduce JI SUNG MACHIENRY Co., Ltd. one of leading manufacturers in the fields of Film Laminating Machines and Auto Pasteboard Machines. Since the establishment of JI SUNG MACHIENRY Co., Ltd. in 06/01/1998, we have devoted ourselves to supplying our products with the excellent quality, the advanced technology and the accumulative experience to the worldwide customers. We make an effort to strive for “BEST QUALITY,” “BEST DELIVERY”, “BEAT A/S” The efforts is the great trust and encouragement from domestic and overseas customers. We are looking forward to getting the opportunity to prove our efficiency, our good products and our extended service in the nearest future.
