Laminating machine, Film laminating machine and more

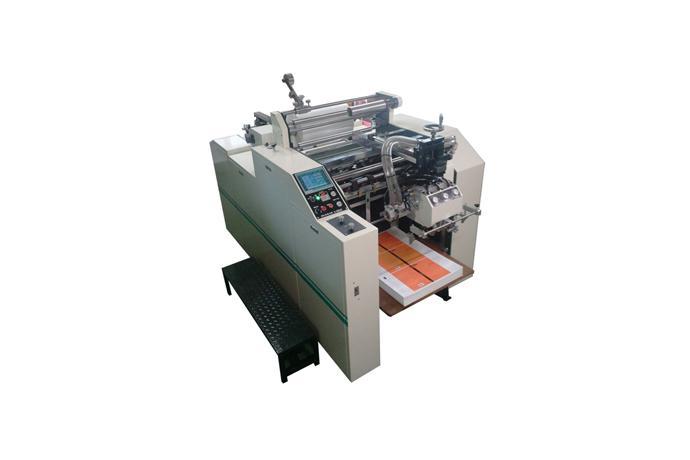

▣ Small auto laminating (film : Thermal, Glueless)
◎ Using for small quantity and various kinds laminating
◎ Doesn’t need expert an operator, anyone can operate it.
◎ Machine’s installation and workspace are convenience.
◎ Photo, album, advertise, sample, and design company is useful
JS-SM 640 | ||
Max.paper size | (L) x (W) (mm) | 640 x 545 |
Min.paper size | (L) x (W) (mm) | 297 x 210 |
Machine speed | (m/min) | 20 ~ 40 |
Machine size | (L) x (W) x (H) (mm) | 2580 x 1180 x 1480 |
Paper range | (g/㎡) | 150 ~ 300 |
Max.pressure | (kg/㎠) | 200 |
Machine weight | (ton) | 1.5 |
Heating consumption | (kw) | 7 |
Power requestments | (V , Hz) | 220v, 50/60 |
Power consumption | (kw) | 3 |
JS-SM 780 | ||
Max.paper size | (L) x (W) (mm) | 788 x 640 |
Min.paper size | (L) x (W) (mm) | 297 x 210 |
Machine speed | (m/min) | 20 ~ 40 |
Machine size | (L) x (W) x (H) (mm) | 2880 x 1180 x 1480 |
Paper range | (g/㎡) | 150 ~ 300 |
Max.pressure | (kg/㎠) | 200 |
Machine weight | (ton) | 1.8 |
Heating consumption | (kw) | 7 |
Power requestments | (V , Hz) | 220v, 50/60 |
Power consumption | (kw) | 3 |
