This product is manufactured by
JMC HYDRAULICS
Manufacturer information
JMC HYDRAULICSHydraulic Radial Piston Motor, Control Valve, Logic Valve
Problem with product info?
Update request
Manufacturer
JMC HYDRAULICS
Brand
-
SKU
90484
Product Name

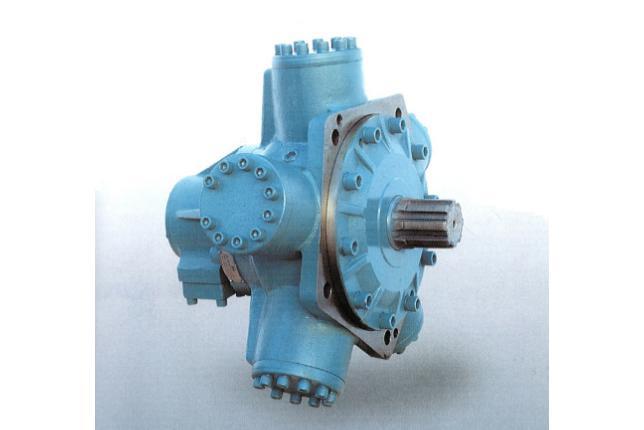

Hydraulic Motor
Model Name
JRC-200
Size
-
Weight
-
Product Details
SPECIFICATION
Model | Displacement (cc/rev) | RRESSURE(kgf/cm²) | SPEED(rpm) | TORQUE(kgf·m) | RATED OUTPUT (kW) | WEIGHT (kg) | |||
RATED PRESSURE | INSTANTANEOUS MAX PRESSURE | RATED SPEED | (140kgf/cm²) CONTINUOUS MAX SPEED | RATED | 17.9 MAX | ||||
JRC-200 | 201 | 160 | 210 | 360 | 600 | 47 | 62 | 17 | 43 |
- Instantaneous maximum pressure means temporary pressure increase including surge pressure. - Special order can be placed upon request.
PERFORMANCE CURVE
BEARING LIFE
- The left diagram indicate bearing life (B10Life) under the conditions of pressure and load on the shaft at the speed of 100rpm
- The case is indicated that radial load is concentrated on the central part of output shaft key
DIMENSIONS
STRAIGHT SHAFT
| TAPER SHAFT
|
INVOLUTE SPLINE SHAFT (KS R2001)
| SQUARE SPLINE SHAFT
|
