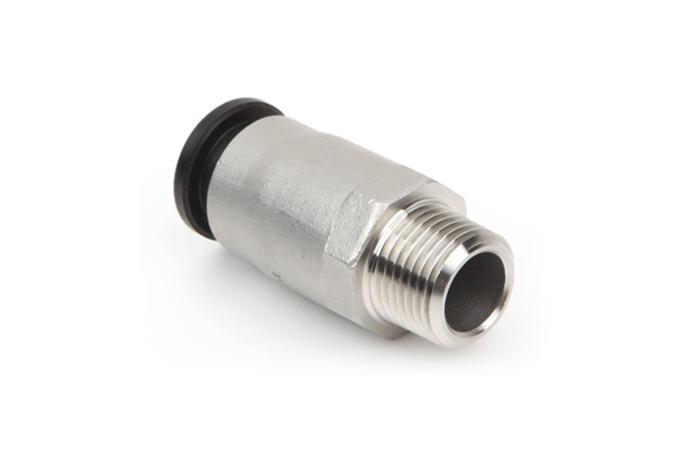

Stainless steel tube and Pipe fitting and manufacturer
Order No. | Size(SU) | Size(INCH) | L(MM) | L1(MM) | L2(MM) |
JVS1315 | 13 x 15A | 1/2" x 1/2"A | 53 | 35 | 16 |
JVS2015 | 20 x 15A | 3/4" x 1/2"A | 55 | 37 | 16 |
JVS2020 | 20 x 20A | 3/4" x 3/4"A | 57 | 37 | 17 |
JVS2525 | 25 x 25A | 1" x 1"A | 62 | 39 | 20 |
JVS3025 | 30 x 25A | 1-1/4" x 1"A | 65 | 43 | 20 |
JVS3032 | 30 x 32A | 1-1/4" x 1-1/4"A | 68 | 43 | 23 |
JVS4032 | 40 x 32A | 1-1/2" x 1-1/4"A | 73 | 48 | 23 |
JVS4040 | 40 x 40A | 1-1/2" x 1-1/2"A | 73 | 48 | 23 |
JVS5032 | 50 x 32A | 2" x 1-1/4"A | 76 | 50 | 23 |
JVS5040 | 50 x 40A | 2" x 1-1/2"A | 76 | 50 | 23 |
JVS5050 | 50 x 50A | 2" x 2"A | 80 | 50 | 27 |
JVS6050 | 60 x 50A | 60 x 2" | 82 | 52 | 26 |
JVS6060 | 60 x 60A | 60 x 2-1/2" | 82 | 52 | 28 |
JVSA1515 | 15A x 15A | 1/2"A x 1/2A | 55 | 37 | 17 |
JVSA1520 | 15A x 20A | 1/2"A x 3/4"A | 57 | 37 | 16 |
JVSA2015 | 20A x 15A | 3/4"A x 1/2"A | 59 | 39 | 15 |
JVSA2020 | 20A x 20A | 3/4"A x 3/4"A | 59 | 39 | 16 |
