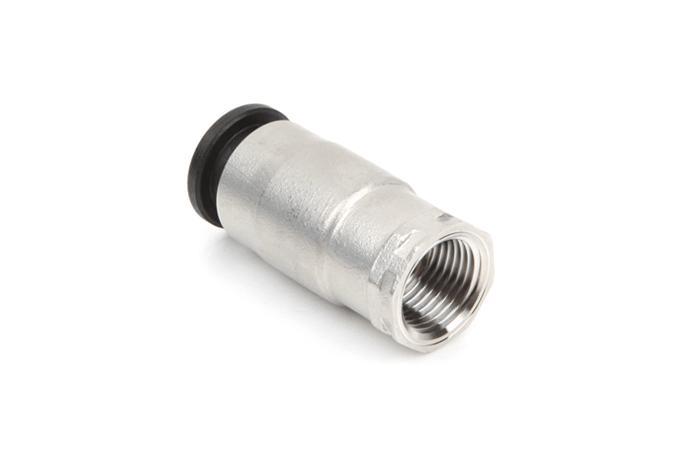

Stainless steel tube and Pipe fitting and manufacturer
Order No. | Size(SU) | Size(INCH) | L(MM) | L1(MM) | L2(MM) |
JRS1315 | 13 x 15A | 1/2" x 1/2"A | 53 | 35 | 16 |
JRS2015 | 20 x 15A | 3/4" x 1/2"A | 53 | 37 | 16 |
JRS2020 | 20 x 20A | 3/4" x 3/4"A | 53 | 37 | 18 |
JRS2515 | 25 x 15A | 1" x 1/2"A | 56 | 39 | 16 |
JRS2520 | 25 x 20A | 1" x 3/4"A | 57 | 39 | 18 |
JRS2525 | 25 x 25A | 1" x 1"A | 61 | 39 | 20 |
JRS3015 | 30 x 15A | 1-1/4" x 1/2"A | 59 | 43 | 16 |
JRS3020 | 30 x 20A | 1-1/4" x 3/4"A | 61 | 43 | 18 |
JRS3025 | 30 x 25A | 1-1/4" x 1"A | 63 | 43 | 20 |
JRS3032 | 30 x 32A | 1-1/4" x 1-1/4"A | 68 | 43 | 23 |
JRS4015 | 40 x 15A | 1-1/2" x 1/2"A | 64 | 48 | 16 |
JRS4020 | 40 x 20A | 1-1/2" x 3/4"A | 66 | 48 | 18 |
JRS4025 | 40 x 25A | 1-1/2" x 1"A | 68 | 48 | 20 |
JRS4032 | 40 x 32A | 1-1/2" x 1-1/4"A | 71 | 48 | 23 |
JRS4040 | 40 x 40A | 1-1/2" x 1-1/2"A | 73 | 48 | 23 |
JRS5020 | 50 x 20A | 2" x 3/4"A | 68 | 50 | 18 |
JRS5025 | 50 x 25A | 2" x 1"A | 70 | 50 | 20 |
JRS5032 | 50 x 32A | 2" x 1-1/4"A | 73 | 50 | 23 |
JRS5040 | 50 x 40A | 2" x 1-1/2"A | 73 | 50 | 23 |
JRS5050 | 50 x 50A | 2" x 2"A | 79 | 50 | 27 |
JRS6050 | 60 x 50A | 2-1/2" x 2"A | 81 | 52 | 27 |
JRS6060 | 60 x 60A | 2-1/2" x 2-1/2"A | 83 | 52 | 28 |
JRSA1515 | 15A x 15A | 1/2"A x 1/2"A | 53 | 37 | 16 |
JRSA1520 | 15A x 20A | 1/2"A x 3/4"A | 53 | 37 | 18 |
JRSA2015 | 20A x 15A | 3/4"A x 1/2"A | 56 | 39 | 16 |
JRSA2020 | 20A x 20A | 3/4"A x 3/4"A | 57 | 39 | 18 |
JRSA2025 | 20A x 25A | 3/4"A x 1"A | 61 | 39 | 20 |
