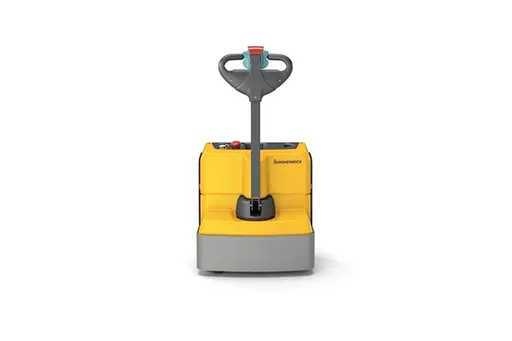

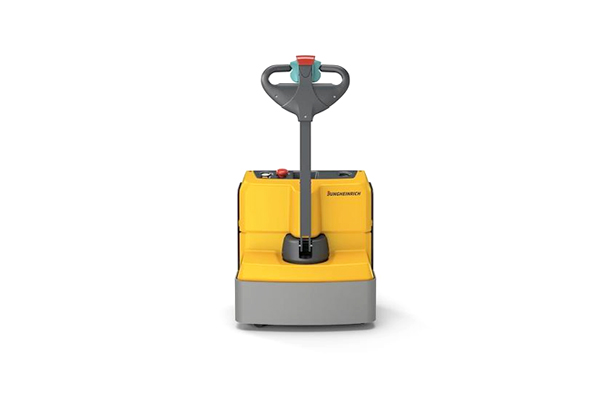

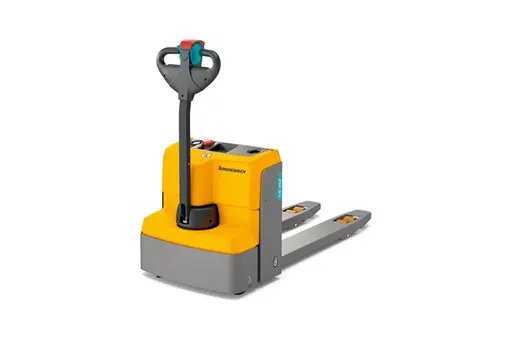

The extremely economical and compact EJE M13 / M15 electric low-lift pallet trucks are the ideal solution for the internal transport of goods in small and medium-sized enterprises.

Thanks to their compact design, they can move pallets and goods quickly and cost-efficiently in confined spaces.

In order to minimize their energy consumption, the M-Series pallet trucks are equipped with powerful 3-phase AC technology and maintenance-free Li-ion or AGM batteries.

The built-in charger allows for quick and easy charging at any 230-V socket. The ergonomic tiller head and low ground clearance with special entry rollers for easy pallet pickup as well as two sprung and cushioned support wheels ensure a particularly high level of safety and stability.

The optional weighing function can be used wherever cargo has to be weighed and transported. Thus, two work steps can be efficiently accomplished with only one truck.

✔ Extremely maneuverable due to its compact size

✔ Powerful and maintenance-free 3-phase AC motors

✔ Support wheels for perfectly safe travel even in curves

✔ Maintenance-free Li-ion or AGM battery with built-in charger

✔ Entry rollers for easy pallet pickup

Features

Energy-efficient operation

• Battery and components are protected and the efficiency is increased through economic energy management.
• Intelligent automatic shut-off engages after 30 minutes without use.
• Energy recovery due to regenerative braking when decelerating.

Innovative drive and control technology

• Motors with 3-phase AC technology for more efficiency, as well as reduced operating costs thanks to the perfect pairing with our own controllers.
• High-efficiency levels with excellent energy management.
• Rapid direction change.
• Maintenance-free drive motor.

Optimum stability

• 2 sprung support rollers installed sideways next to the drive wheel increase the stability of the truck and reduce the risk of transport damage.
• In addition, for the easy loading of pallets, fork tips are equipped with entry rollers.

Safe operation

• Low ground clearance of just 35 mm reduces the risk of injury for the operator.
• Fully closed frame, especially the lift cylinder.

Compact design

• High maneuverability due to short chassis and low overall height for use in confined spaces.

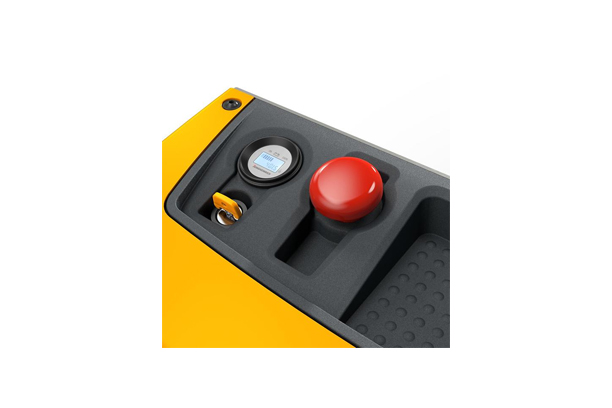

• Central arrangement for all important control instrumentation such as the battery discharge indicator, hour meter, emergency disconnect, and key.
• Sufficient storage space even with slender design.

Work ergonomically

• Optimal adaptation of the trucks to the ergonomic needs of the operator.
• The reduced force required while steering is due to the low-mounted tiller.

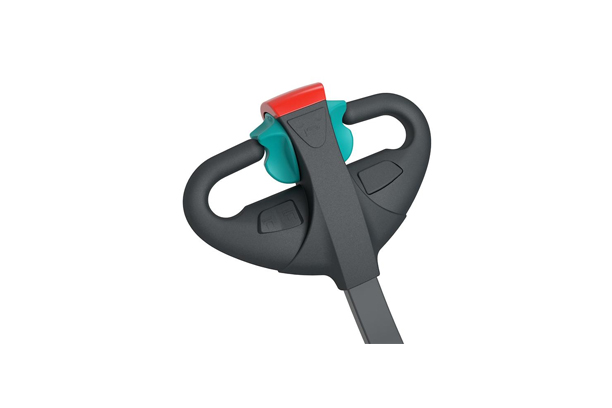

• Dual-sided operation of the tiller handle for ergonomic and safe use at the highest level.

Optional weighing system

• Transporting and weighing of goods with just one vehicle.
• 4 weighing cells provide optimum measuring results with a deviation of less than 1% across the entire weighing range.
