Pedestrian pallet truck 2.2 - 2.5t
Model Name
EJE 222r
Series
Pallet trucks / Pallet jecks
Data
Data sheet-Jungheinrich-Pedestrian pallet truck 2.2 - 2.5t-EJE 222r, EJE 225r
Manufacturer information
provider logo
JUNGHEINRICH

Pedestriantrucks, Customisedtrucks, Energy systems, Mobile Robots, Stacker cranes, Racks and more

Problem with product info?
Update request
Manufacturer
JUNGHEINRICH
Brand
-
SKU
139435
Product Name
Pedestrian pallet truck 2.2 - 2.5t
Model Name
EJE 222r, EJE 225r
Size
-
Weight
-
Product Details

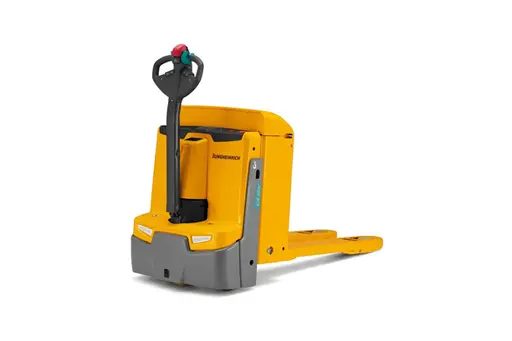

Our robust and powerful EJE 2r electric pedestrian pallet truck is the perfect assistant for efficient loading and unloading of HGVs on the ramp.

A patented ramp lift reliably compensates for any height differences, allowing problem-free loading and unloading of the first row of pallets in the HGV.

A powerful 3-phase AC motor with a high degree of efficiency delivers impressive performance, while state-of-the-art control electronics and a tiller arm perfectly adapted to the operator facilitate safe and intuitive working.

Maximum protection against breakdowns is ensured by the robust frame, reinforced forks and non-contact sensor technology in the tiller arm.

In terms of durability, the EJE pallet trucks convince with long-lasting batteries for intensive applications, low maintenance and reduced wear.



✔ Level compensation due to additional ramp lift.

✔ Long safety tiller with 4-level foot protection.

✔ ProTracLink system for perfect driving stability.

✔ Robust steel frame for high durability.

✔ Quick and easy to maneuver thanks to short front end length.





Li-Ion

No worries. No compromise.

With the Jungheinrich Li-ion Guarantee Plus, we give you a long-term performance promise of up to 5 years on our high-quality lithium-ion batteries, so you can completely concentrate on your tasks without worrying.

100 % satisfaction. Guaranteed.

We are convinced this decision is right for you. That‘s why we guarantee that you can easily and quickly switch back to the original technology at any time within the first 6 months – without stating reasons.





Features

High-performance 3-phase AC technology

  • The high degree of efficiency with excellent energy management.
  • Powerful acceleration.
  • Quick change of direction without delay.
  • Two-year warranty on the drive motor.



Professional battery management

  • Long operating times with battery capacities up to 375 Ah.
  • Multi-shift operation with the optional lateral battery exchange.
  • Optional built-in charger for easy charging at any standard 230-volt mains socket.



Available with lithium-ion technology

  • Rapid charging function for efficient charging processes during a shift.
  • No battery exchange required.
  • Cost savings due to longer service life and zero maintenance compared to lead-acid batteries.
  • No charging rooms and ventilation required as there is no build-up of gas.



Robust design for the toughest applications

  • 7-mm high-grade steel apron on the front of the frame.
  • High residual capacities due to reinforced fork construction.
  • Two-year warranty on the drive motor.
  • Powerful acceleration.



Optimum cornering

  • Sprung and cushioned support wheels with ProTracLink torsion bar for optimum support in every driving situation.
  • Perfect for use on loading ramps and for loading and unloading of HGVs.



Reduced maintenance costs

  • Maintenance-free 3-phase AC motor without carbon brushes.
  • Easy access to all components through one-piece front cover secured by 2 screws.
  • Excellent protection against dust and humidity through enclosure of controls and plugs as per IP 54.
  • Reduced support wheel wear due to patented ProTracLink.
  • Optional torsion bar with wide support wheels and wide drive wheel for a safe ride, even with longitudinal joints (e.g. cold store trailers).



Level compensation due to ramp lift

  • Patented ramp lift for level compensation on ramps with gradients of up 15%.
  • Problem-free loading of first row of pallets in HGVs thanks to additional ramp lift.

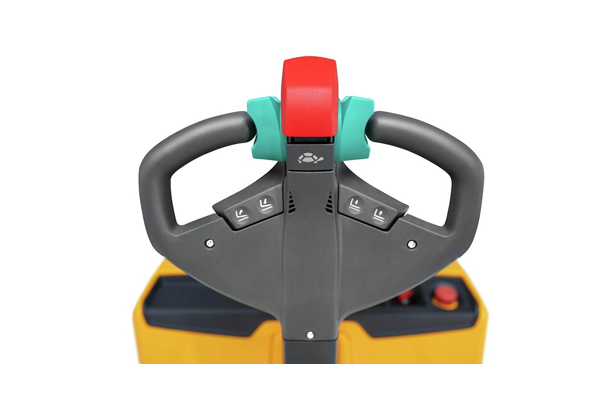

Ergonomic tiller arm

  • Optional safety tiller with 4-level foot protection.
  • Intuitive operation thanks to a clear colour coding system, buttons with wear-resistant icons and rocker switches for optimum operation in every tiller position.
  • Easily accessible crawl speed button on the underside of the tiller arm.
  • Excellent protection against breakdown via non-contact sensor technology with IP 65 protection rating.



Always informed

  • Optional 2-inch display showing battery charge status, number of operating hours and error codes.
  • Choice of 3 travel programs.
  • Optional truck activation via key or soft key, PIN code or transponder card.



Additional equipment

  • Load guard.
  • Cold store version.
  • Built-in charger.
  • silent drive for quiet operation.





Model Overview

Model Load capacity Lift height Travel speed Overall length Battery voltage
EJE 222r 2,200 kg 122 mm 6 km/h 1,737 mm 24 V
EJE 225r 2,500 kg 122 mm 6 km/h 1,737 mm 24 V
