Combined sandwich panel line
Model Name
-
Size
-
Weight
-
Product Details

The combined sandwich panel production line is manufactured from customer’s needs, who want to produce various kinds of insulated sandwich panels with small production capacity in one sandwich panel production line, based on the advanced sandwich panel production technology by KINDUS.

It can be divided into mineral-wool & PU/PIR combined sandwich panel production line and EPS & mineral-wool sandwich panel production line and KINDUS, we put the first mineral-wool & PU/PIR combined sandwich panel production line on the market in Korea.

K Industrial Combined sandwich panel line


 KINDUS’s combined sandwich panel production line is composed as follows;



Composition

– Mineral-wool & PU/PIR combined sandwich panel production line

Step 1. Decoiling system
Step 2. Roll forming system
Step 3. Mineral-wool board feeding system
Step 4. Adhesive(glue) system
Step 5. Side PU injection system
Step 6. PU/PIR foaming system
Step 7. Double belt slat conveyor(caterpillar) system
Step 8. Cutting system
Step 9. Cooling system
Step 10. Stacking system
Step 11. Wrapping system
– EPS & Mineral-wool combined sandwich panel production line


Step 1. Decoiling system
Step 2. Roll forming system
Step 3. Mineral-wool board feeding system
Step 4. EPS board feeding system
Step 5. Adhesive(glue) system
Step 6. Side PU injection system
Step 7. Cutting system
Step 8. Cooling system
Step 9. Stacking system
Step 10. Wrapping system



Our combined sandwich panel production line is already recognized its value by major sandwich panel producing companies at domestic and foreign with various technical researches and a high level services, KINDUS, we will keep trying for development in accordance with customer’s needs for the high quality sandwich panels.

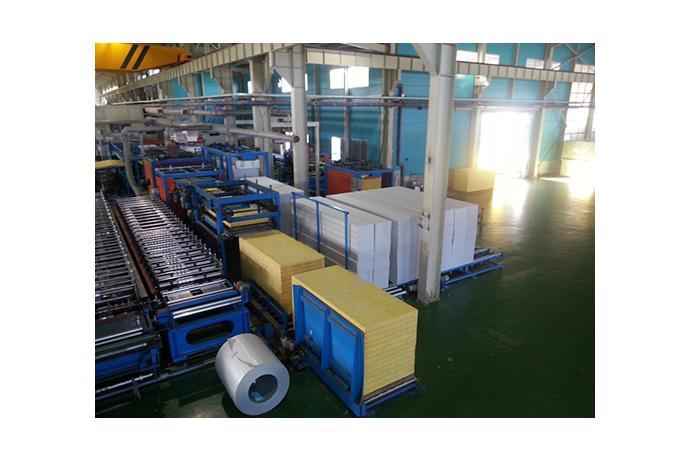

Reference photos

K Industrial Combined sandwich panel line  1

K Industrial
Assembly sandwich panel production line and building material production facility manufacturer
When sandwich panels were first produced in Republic of Korea since 1979, K Industrial Co., Ltd. was established for supplying sandwich panel production line and various roll forming machines. Our ultimate goal is to supply the most reliable machinery for building materials including roll forming machine and sandwich panel production line which are practical and convenient with best quality & productivity. KINDUS, who makes ceaseless research and effort for the advanced sandwich panel production technology, we had touched success to localization of the whole continuous polyurethane and polyisocyanurate sandwich panel production line through design, manufacturing, installation and commissioning for the first in Korea, 2003. Since then KINDUS plays a leading role in Korea and has been continued to supply the Korean sandwich panel production line at domestic and foreign companies. Finally in 2008, we had accomplished to export our continuous PUR/PIR sandwich panel production line to Europe, the home of sandwich panel. Also, it was the first time in Korea and that production line was totally 450meters long with 7componants PUR/PIR foaming system include pentane part. And the superiority & quality is recognized internationally based on South Korea, Asia, North Africa, Middle East, Russia, CIS region, South America and Europe. On the basis of such experience and know-how, now we run two(2) factories – the first one is machinery manufacturing plant in Ansan Smart Hub and the second one is sandwich panel manufacturing plant in Hwaseong Bio Valley. Also, we established a sales subsidiary Paneltech Co., Ltd. in Seoul which is exclusively responsible for sales various sandwich panels. KINDUS, we will continue effort to supply more perfect service anywhere in the world and show higher level roll forming machines and sandwich panel production lines and reliable sandwich panels which can make outstanding performance under in any environmental condition.
