Product Name
Window reinforcement steel roll forming machine
Model Name
-
Size
-
Weight
-
Product Details
Reinforcement steel is a material which plays the backbone by supporting glass weight and the frame, and it is inserted inside the chassis.
This material is indispensable to the chassis and it acts in support of whole chassis in different shapes and thickness for each maker’s.
KINDUS’s window reinforcement roll forming line is manufactured in standing roll replacement type and it produces architectural finished and equipped materials(T-bar, M-bar, Stud) and chassis reinforcement-bar.
And it is composed that can use multi directional roll forming.
Composition
| Uncoiler |
| Roll forming machine |
| Cutting press and cutting mold |
| Rut-out table |
| Rack |
Specification
| Material | CR, GI, EGI, PO, HGI |
| Thickness of material | 0.3~3mm |
| Production speed | 20~50m/min |
| Cutting type | Flying cutting type |
| Cutting length | 300~6,000mm |
| Length tolerance | ±0.5mm |

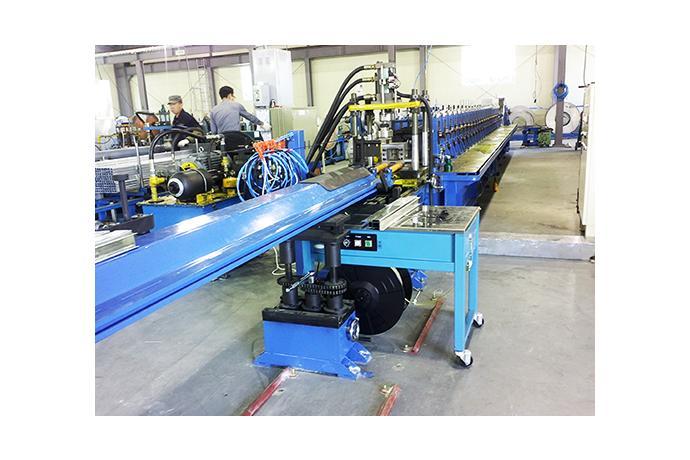

Reference photos
