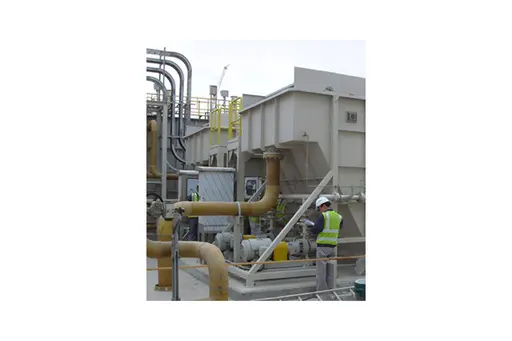

product Image
경사판 강압 부상시스템 (PWF/CPF)
Model Name
PWF10
Series
경사판 강압 부상시스템
Data
-
Manufacturer information
provider logo
K-pack Korea

Polymer automatic dissolution equipment, Inclined plate pressure flotation system, Precipitation system, Pipe reactor, Environmental plant and more

Problem with product info?
Update request
Manufacturer
K-pack Korea
Brand
-
SKU
142349
Product Name
경사판 강압 부상시스템 (PWF/CPF)
Model Name
PWF10, PWF15, PWF20, PWF35, PWF50, PWF75, PWF100, PWF125, PWF150, CPF05, CPF10, CPF15, CPF20
Size
-
Weight
-
Product Details

PWF/CPF (Counter-current DAF-principle)

월류부하(오염물질의 부상속도)가 매우 낮은 중(中)농도의 폐수처리에 적합 (1.2~1.5 ㎥ / ㎡ / hr)

  • 제지, 펄프 생산공정
  • 섬유, 염색 공정
  • 석유화학 공정
  • 식육수산가공 축산폐수, 식품가공 공정
  • 각종 화학산업 폐수의 부상분리



Type

Type Capacity
(㎥/hr)
Over Flow Load
(㎥/㎡/hr)
Area
(㎡)
Dimension (mm) Nozzle (A)
Length (A) Width (B) Heigh (C) Inlet (D) Float
Discharge (E)
Outlet (F) Bottom
Sluge (G)
PWF10 10 1.47 1.1 2200 1400 2100 80 80 80 80
PWF15 15 1.47 1.65 2200 1900 2100 80 80 80 80
PWF20 20 1.56 1.84 2900 1400 2700 100 100 100 100
PWF35 35 1.81 2.75 2900 1900 2700 125 100 125 100
PWF50 50 1.95 3.67 2900 2400 2700 150 150 150 100
PWF75 75 1.28 6.08 4400 2400 3500 200 150 200 150
PWF100 100 1.43 6.98 4800 2400 3800 200 200 225 150
PWF125 125 1.43 8.73 4800 2900 3800 250 200 250 150
PWF150 150 1.43 10.47 4800 3400 3800 300 200 300 150
CPF05 5 1.47 0.55 2200 900 2100 50 80 50 50
CPF10 10 1.47 1.1 2200 1400 2100 80 80 80 80
CPF15 15 1.47 1.65 2200 1900 2100 80 80 80 80
CPF20 20 1.5 2 2200 2400 2050 80 100 100 100
K-pack Korea
Polymer automatic dissolution equipment, Inclined plate pressure flotation system, Precipitation system, Pipe reactor, Environmental plant and more
The world is now more capable of preserving the Earth’s environment than of technology, and of product excellence. The era of global environmental competition has come where only eco-friendly products can survive. Since its establishment in 1996, K-pack Korea has partnered with the Netherlands’ K-pack Water Treatment B.V. to incorporate the world’s excellent environmental technology into the domestic environment market, and has also partnered with Germany’s Alltech Dosieragen GmbH, polymer solvents, and Dosingpump. Since then, localization has been realized through constant technology development, and the excellence of technology and quality has been recognized in many domestic sites.As a leader in cutting-edge environmental technology in the more complex environment market, we will make our best efforts to supply high-quality, state-of-the-art processing systems that other companies can never imitate.
