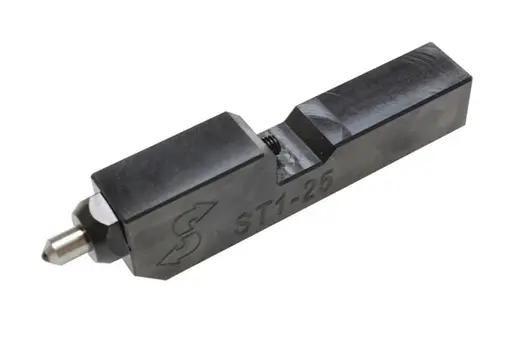

Diamond Burnishing tool ST-1 is used for finishing the surface of steels, stainless steels, cast iron, alloy parts .

Supplied with  adjustable burnishing force, for processing various parts.

Loading tuning device is purchased separately, or we can adjust loading for your single workpiece

Workpart shapes - cylinder, body of rotation, plain body, spherical part

Workpiece diameter up to 150 mm (if larger diameter can be customized)

Metric Toolholders 16x16, 20x20, 25x25, 32x32 (can be customized )

Inch toolholders   0.625"x0.625"   0.750"x0,750"   1.00"x1.00"    1.25" x 1.25"

Indenters made of natural diamond

The tool completely replaces the grinding and polishing machines.

Our tool kills costs for extra personnel, grinding machines, consumables, re-installation and re-basing of parts .

During processing, the roughness is smoothened to the level Ra = 0.2 ..... 0.05 ?m in one or two passes

Can be used on CNC machines/universal lathes.

To obtain a stable micro profile of a surface , we recommend to use ST-1 on machines that can provide finishing turning!

Materials: any structural steel max HRC 62

Roughness before processing: no more than Ra = 1.25 ?m

High-precision diamond tools. Metal burnishing.

These diamond tools are designed to increase surface hardness through the cold-working process and compressive forces, and they increase metal’s resistance to fatigue and failure at stress points while producing a dense and uniform surface. They are available in inch and metric slim-line, square, offset, on-center, stick and boring bar styles.

With cycle times that are measured in seconds rather than minutes, diamond burnishing allows companies to achieve a consistent mirror-like finish and replace hand polishing. Economical, long-lasting and replaceable wear parts are said to reduce the total cost throughout the life of the tool. Wear parts are easy to replace, with common tool
