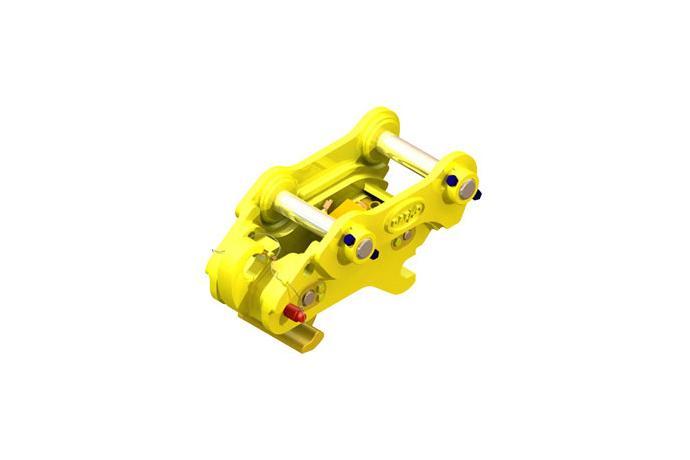

Excavator Hydraulic Quick Coupler manuafacturer
ITEM | Unit | 8 ~ 17 ton | 20 ~ 30 ton | 40 ~ 50 ton |
---|---|---|---|---|
Overall Length(L) | mm | 585 ~ 876 | 936 ~ 1103 | 1130 ~ 1135 |
Overall Height(H) | mm | 317 ~ 485 | 485 ~ 610 | 610 ~ 654.5 |
Overall Width(W) | mm | 307 ~ 495 | 533.5 ~ 998 | 668 |
Installation Length(L1) | mm | 275 ~ 410 | 460 ~ 550 | 577 |
Mounting Length(L2) | mm | 275 ~ 410 | 460 ~ 550 | 577 |
Height Between Axeles(H1) | mm | 185 ~ 285 | 285 ~ 360 | 360 ~ 380 |
Installation Width(W1) | mm | 195 ~ 308 | 332 ~ 432 | 432 |
Pin Diameter(Φ) | mm | 55 ~ 70 | 80 ~ 100 | 100 ~ 120 |
Working Presure | kaf/㎠ | 30-220-45-291 | 45-291-60-320 | 60 ~ 320 |
Application Model | DMQ 80 | DMQ230 DMQ290 DMQ360 DMQ35-7 | DMQ450 DMQ500 DMQ50N-7 | |
Reference DWG. |
