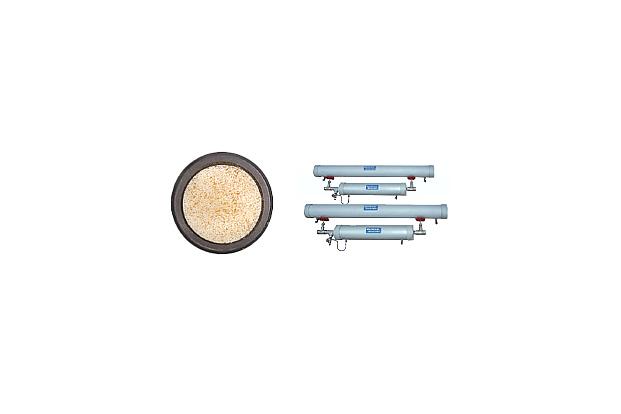

Strong merit of Membrane N2 Generator - Small space needed for installation and easy management - Outstanding durability and lower maintenance expenses - Superior thermostable and chemical material |
 |
Gas separating principle of membrane
When the gas mixture contacts the surface of the membrane, all ingredients of gas will be melted and diffused into the membrane. Required gas can be provided after separating gases using the difference of permeating speed between gases as the picture below (methane and nitrogen are very slow-permeating gas ingredients).
| N2 Purity | 99% | 98% | 97% | 96% | 95% | Dimension(mm) (L*W*H) |
| Model | Nitrogen Flow Capacity (Nm3/hr) Inlet Condition : Pressure min.7.0kg/cm2. temp.25℃ | |||||
| KM-20 | 0.073 | 0.12 | 0.15 | 0.18 | 0.20 | 240*60*50 |
| KM-40 | 0.16 | 0.22 | 0.28 | 0.34 | 0.40 | 350*60*50 |
| KM-90 | 0.35 | 0.50 | 0.64 | 0.78 | 0.90 | 600*60*50 |
| KM-180 | 0.67 | 0.96 | 1.21 | 1.51 | 1.80 | 1,100*60*50 |
| KM-210 | 0.75 | 1.20 | 1.42 | 1.72 | 2.10 | 1,100*90*70 |
| KM-450 | 1.62 | 2.50 | 3.12 | 3.82 | 4.50 | 1,100*120*70 |
| KM-1000 | 3.62 | 5.30 | 6.82 | 8.32 | 10.0 | 1,200*180*100 |
| KM-3200 | 11.2 | 15.6 | 21.0 | 25.5 | 30.0 | 1,600*230*160 |
| KM-6000 | 20.0 | 30.0 | 40.0 | 50.0 | 60.0 | 1,600*350*220 |
* Above option is for reference and it can be changed on manufacturing.
* Membrane for oxygen0hatching and drying is manufactured by order.
