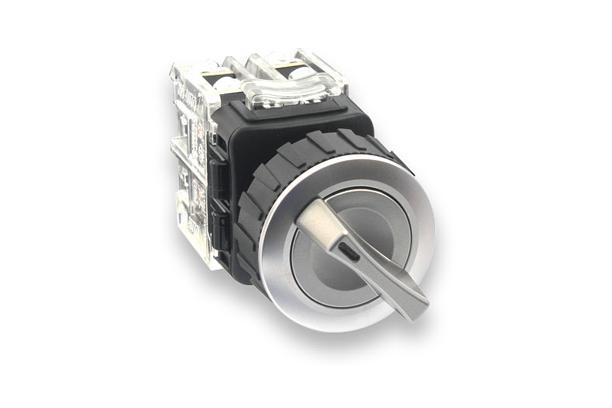

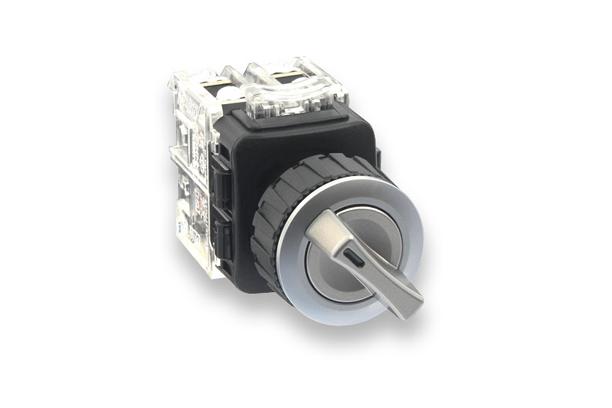

Features
1. Designed to separate into Actuator and Contact part.
2. Designed ∅22, ∅25 and ∅30 attaching hole for various selection.
3. The panel till be beautiful and simple caused by the Flush type switch.
4. The snap action contact block is designed as 1a1b basically.
5. A light source is designed for a LED
6.
LED Lamp
KM-J,L Type
| Rated voltage | Rated voltage |
| 12/24V d.c | 22mA |
| 110/220V a.c | 8nA 이하 |
KM-Q Type
| Rated voltage | Rated voltage |
| 12/24V d.c | 32mA |
| 110/220V a.c | 7.5mA |
Performance
Circuit diagrams
Name composition
Q : Round & Flush type ∅22
J : Round & Flush type ∅25
L : Round & Flush type ∅30
Panel cutting size
| Wiring diagram
|
Panel cutting size
| ∅22 Normal type attaching
|
Part
| Division | Form | Code | Explain |
Contactor unit KM-Q |
| KD-10 | The Contact block is designed as 1a1b basically and it is easy to assemble and disassemble. |
Contactor Unit KM-J, L |
| KG-10 | The contact block is designed as 1a1b basically and it is easy to assemble and disassemble. |
Attention
- Panel cutting sizes are shown above. Use it according to size.
- Panel thickness is 1~6mm
- Be careful not to change the wiring between Lamp terminal and switch terminal.
- Attaching nut torque is below 20kgf · cm
- Attaching bolt torque is below 5kgf · cm
- Use a M3.5 and ring washer for the terminal.
