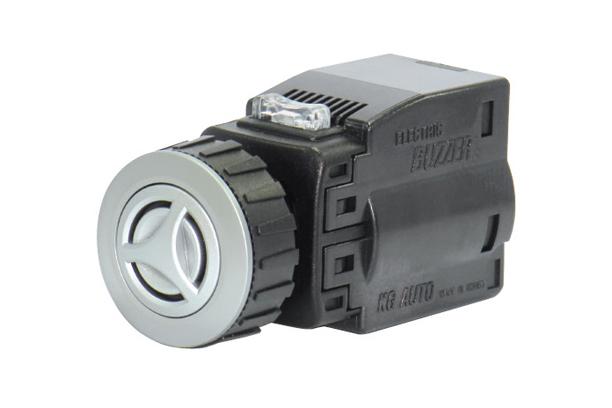

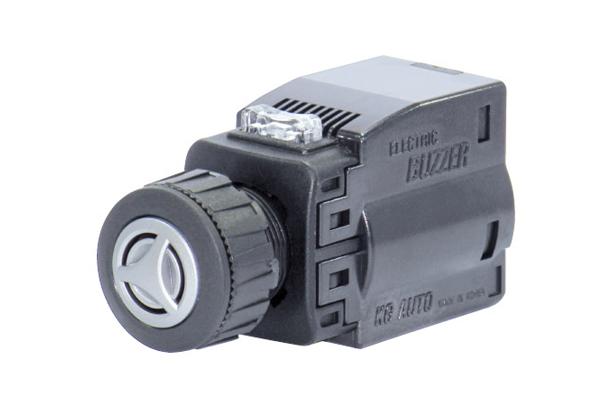

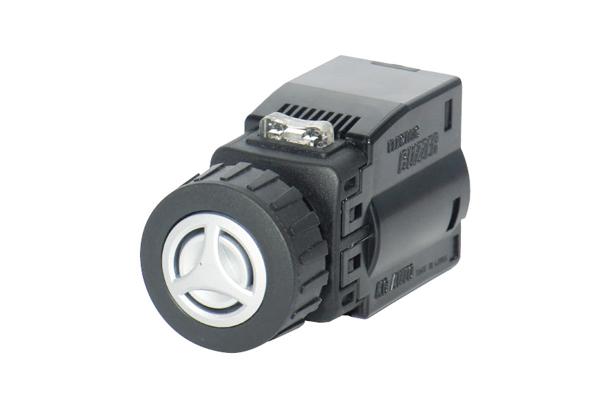

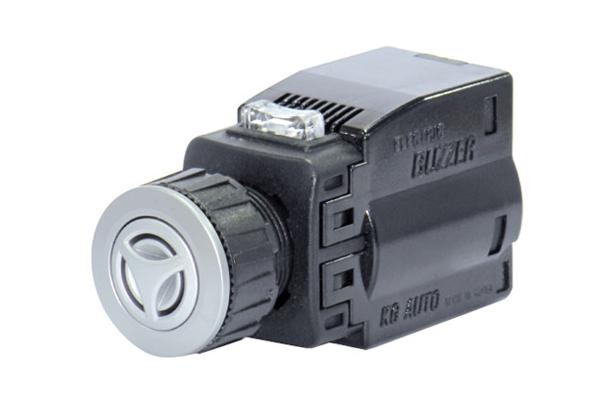

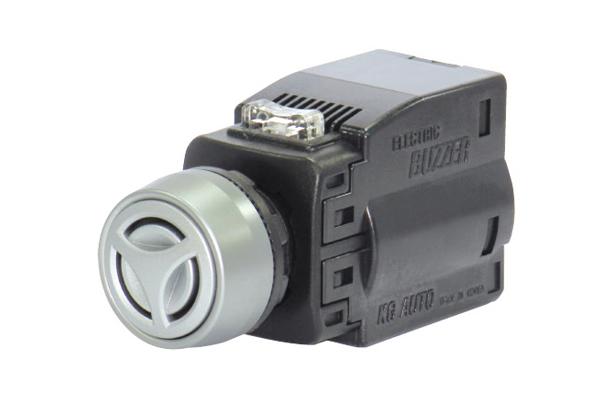

Features
LED Lamp
| Rated Voltage | Rated Current |
| 12/24V d.c | 22mA |
| 110/220V | 8mA 이하 |
| 380V a.c | 24mA |
| 125V d.c | 4.5mA |
| 220V d.c | 4.5mA |
Circuit diagrams
Performacne
Name composition
KG S/W Symbol mark
Features
1. When presenting date, such as the symbol that you want in the form as it is making this possible.
2. Symbol mark is making a computer laser engraving machine, laser engraving is part of burning technique is more efficient than traditional
printing methods and keep a long life.
3. Symbol mark is applied to the switch is a FA equipment, CD equipment, laser equipment, etc. can be applied to a wide of industrial site.
적용모델 : KG-N, H, C, J, Y, L TYPE
Symbol mark
Symbol mark
KG-N TYPE
| KG-H TYPE
|
KG-J TYPE
| KG-L TYPE
|
※ KG-J 타입 자기유지 제품 적용 불가.
The method which attaches and assembly order
| The method which attaches and assembly order
|
User Guide
Panel cutting size
| ∅22 Normal type attaching
|
∅25 Normal buried type attaching
| ∅30 Luxury buried type attaching
|
KG-EG22 |
KG-EN22/25 |
KG-EG30 |
Emergency guide
 EMS-22  |
EMS-25
|
EMS-30
|
Attention
- Panel cutting is above by a necessity to select
- Panel thickness 1~6mm
- Lamp terminal and terminal wiring not to be exchange it will have attention
- Attaching nut torque is below 20kgfㆍcm
- Attaching bolt torque is below 5kgfㆍcm
- Terminal bolt used ring washer and M3.5
Parts
| Division | Form | Code | Explain |
Contactor unit |
| KG-10 | Contact block was planned basic 1a1b and the maximum 4a4b until there is possibility of attaching |
Fixing plate |
| KG-F | Operating or contactor part attaching and remove is easy |
∅25 ring |
| KG-25 | ∅25 panel attaching |
Support block |
| KG-20 | Contactor part support block |
Actuator Protect Cover |
| KG-22G | ∅22 Actuator protect cover |
| KG-25G |
| |
| KG-30G |
| |
Turn prevention ring |
| KG-28 | Operation part ∅22 turn prevention ring |
Attaching tool |
| KG-40 | Use the attaching panel |
Contact block protect cover |
| KG-50 | When authorizing an electricity in contact block prevents an electrics shock |
Lamp block protect cover |
| KG-60 | When authorizing an electricity in lamp block prevents an electrics shock |
Protect cover |
| KG-S22 | Operating part water protector ∅22 |
|
| Operating part water protector ∅25, ∅30 |
