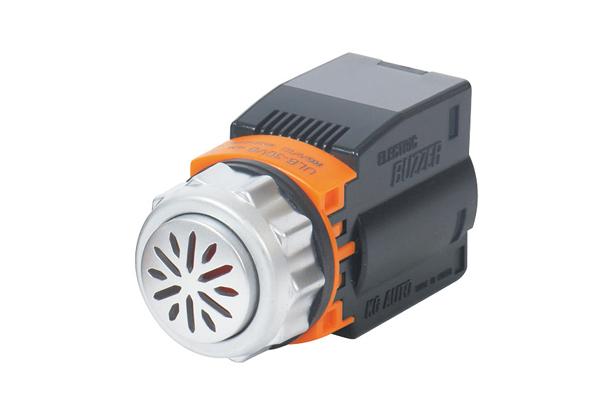

Features
1. Control part and contact part is designed separate type.
2. Contact parts are easily detachable unit is designed as a detachable.
3. Contact block was planned basic 1a1b
4. The output designed basic for LED
5. There is protective cover for contact terminals from electric shock
6. There are two attachment holes ∅25, 30 model
7.
LED Lamp
| Rated voltage | Rated current |
| 12V d.c | 8mA / 100mw |
| 24V d.c | 18mA / 430mw |
| 110V a.c | 3mA / 330mw |
| 220V a.c | 7mA / 1.5w |
Circuit diagrams
Performance
Name composition
Rated
| Voltage | Consumption | dB | Hz |
| 12/24V d.c | Max, 27mA | 95dB | - |
| 110/220V a.c | Max, 27mA | 95dB | 50~60Hz |
External form / Drawing
Part
| Division | Form | Code | Explain |
| Contactor unit |
| UL-10 | Base contact is designed as 1a. Easily assembly and removable with body. |
| Contactor unit |
| UL-20 | Base contact is designed as 1b. Easily assembly and removable with body. |
| Contactor unit |
| UL-12 | Base contact is designed as 1a1b. Easily assembly and removable and removable with body. |
| ∅25 Guide |
| UL-25G | Operation part ∅25 guide |
| ∅30 Guide |
| UL-30G | Operation part ∅30 guide |
| Turn prevention ring |
| UL-25T | Operating part ∅25 turn prevention ring |
| Turn prevention ring |
| UL-30T | Operation part ∅30 turn prevention ring |
비상명판 KG-EN22/25
| 비상 명판 KG-EN30
|
Attention
- Panel cutting is above by a necessity to select
- Panel thickness 1~6mm
- Lamp terminal and terminal wiring not to be ex change it will have attention
- Attaching nut torque is below 20kgf· cm
- Attaching blot torque is blow 5kgf· cm
- Terminal blot used ring and M3.5
