Classification
Features
1. Limit switch becomes to make the aluminum die-casting in the case which is strong it maintains a long life in shock outside.
2. Inner switch is composed of 2 stage, it makes with strong quality of material
3. heat-proof, oil- proof, dust-proof structure.
4. Protected structure : IP67
5.
Use
1. Location decision of various machine.
2. Passage confirmation and directional control of cargo work transportation machine.
3. The other general industrial machine.
Specification
Quotation
| Quotation of KC
|
Name composition
External form / Drawing
Variable roller lever
KG-L001 / KG-L201

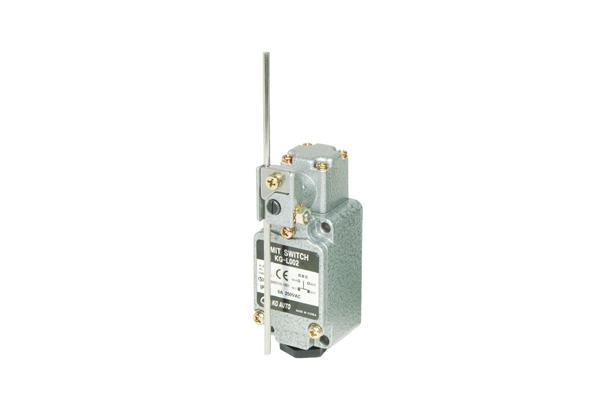

Variable rod lever
KG-L002 / KG-L202

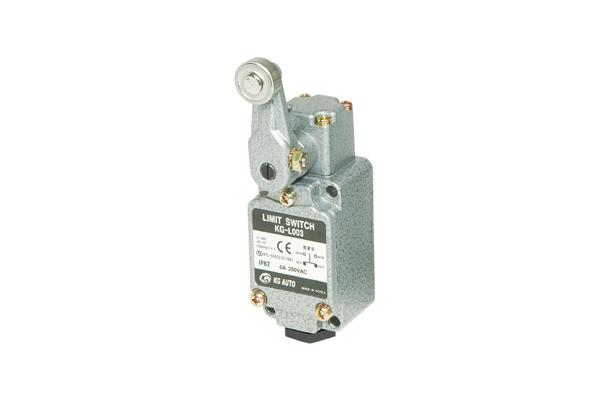

Roller lever
KG-L003 / KG-L203
Roller plunger
KG-L004 / KG-L204

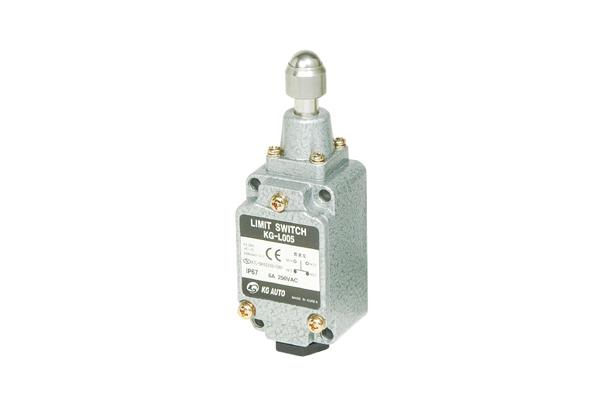

Ball plunger
KG-L005 / KG-L205

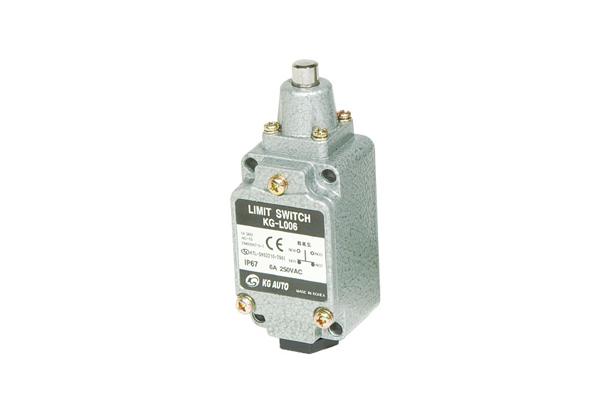

Push plunger
KG-L006 / KG-L206

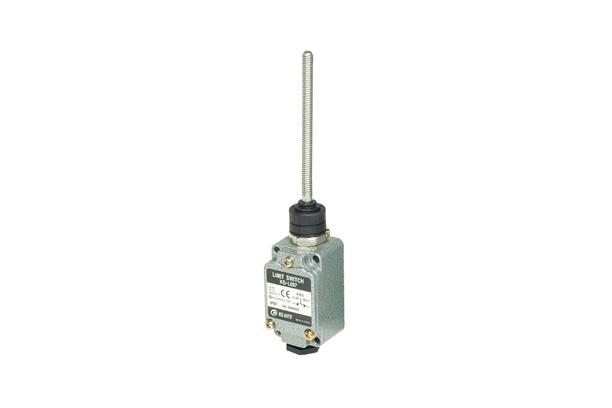

Spring wire
KG-L007 / KG-L207
KG-LS100
| ๊ธฐ๋ณธํ
| NC Lamp ON
| No Lamp ON
|
External form of lever
KG-LE100
| KG-LE200
| KG-LE300
|
Attention
- Please cares to not force or shock to the actuator so that the operating body of the switch.
- In case of cam, dog unsettled operation or machine life will be decrease. Also becomes the cause defective occurrence.
- When working, to refer to the lower part picture.
User Guide
| Name | Explanation | Figure caption |
KG-L001 | Actuator attachment location changes There is possibility of setting actuator with 360ห omnidirectionals |
|
KG-L001 | Head location changes Will release screw of the head and there is a possibility which will set even in four kind of location |
|
KG-L003 | Attaches roller lever in opposition and the roller will be able to attach in internal In order for to perpendicular the operation to be completed from within scope of 60ห to be set |
|
KG-L001 | Will be able to control rod and lever length Will release a six-angle bolt and will be able to control rod and lever length |
|
