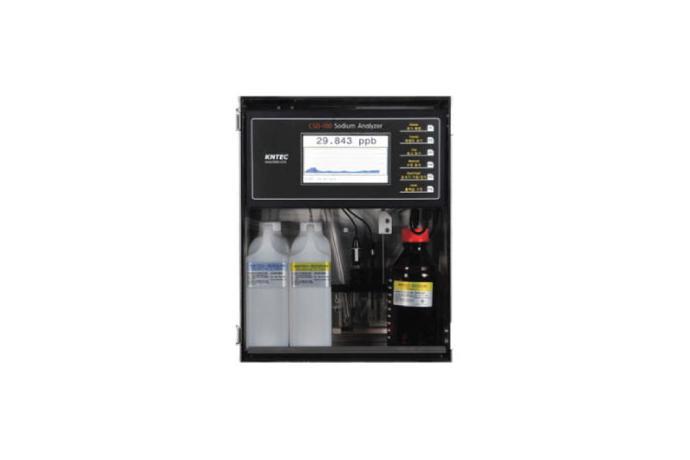

Sodium(Na) Analyzer
Model Name
CSD-100
Data
-
Manufacturer information
provider logo
KNTEC

Water quality control system manufacturer, Silica analyzer, Phosphate analyzer, Steel analyzer and more

Problem with product info?
Update request
Manufacturer
KNTEC
Brand
-
SKU
48983
Product Name
Sodium(Na) Analyzer
Model Name
CSD-100
Size
-
Weight
-
Product Details

Convenient maintenance

ㆍLow maintenance

ㆍAutomatic range selection

ㆍData storage function (USB)

7" Color LCD Monitor & Touch Screen

Display of data trend

Alarm function for lack of reagents or sample

Automatic calibration by standard solution

Applications

ㆍPower plants, Semiconductor industry etc.

ㆍDemineralized water making system





Technical Specifications

Model CSD-100

Measure principle

ISE Method

Measuring Range

0~100 to 0~500 ppb

Display

0.001 ppb

Accuracy

±0.1 ppb or ±5% of reading

Response Time

2 min

Temperature Compensation

Automatic

Calibration

Automatic by standard solution

Sample Pressure

1 ~ 5 Bar

Sample Temperature

5 ~ 45 ℃

Sample Flow

100~200 ml / min

Sample Connections

Inlet 6mm / Outlet 10mm

Reagent Consumption

90 days (A/1L, STD/2L*2)

Data Output

4 ~ 20 mA 2 ea, Alarm 2 ea

AUX ports

DI(2), DO(2), Option (AI, AO)

Dimensions

400W X 500H X 200D (Flush Type)

Degree of Protection

IP65( NEMA 4x): Electronics, IP55(NEMA 4): Wet part

Power

100~240 VAC (50/60 Hz)
Water quality control system manufacturer, Silica analyzer, Phosphate analyzer, Steel analyzer and more
KNTEC, which is specialized in the development and manufacturing of water quality control systems for industry, has strived to make fast and accurate sampling and management of water quality control for use in the commercial and industrial Environments.  The on-line water quality analyzers and control systems of KNTEC have been developed and designed to offer reliable and accurate testing of the water quality through a lot of experiences in industrial jobsites.  KNTEC will continue to manufacture quality products and provide best services to the customer’s satisfaction.
