product Image

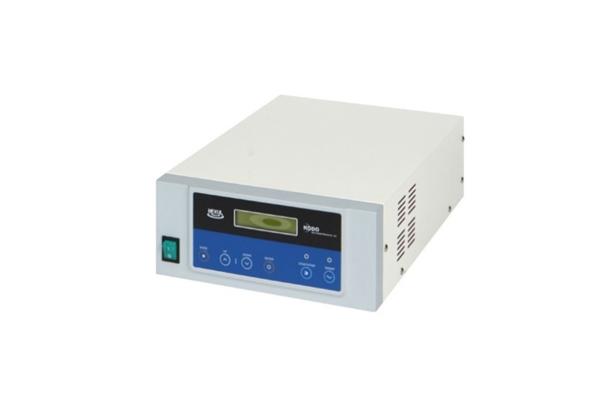

​High frequency Ultrasonic Generator NXG-HD Series
Model Name
NXG-HD-68K
Series
Ultrasonic Unit (Ultrasonic Generator)
Data
-
Manufacturer information
provider logo
KODO

Manufacturer of Ultrasonic washing M/C, Ultrasonic vibrator, Ultrasonic oscillator, Cutter, Ultrasonic unit, Table type washer

Problem with product info?
Update request
Manufacturer
KODO
Brand
-
SKU
129875
Product Name
​High frequency Ultrasonic Generator NXG-HD Series
Model Name
NXG-HD-68K, NXG-HD-75K, NXG-HD-100K, NXG-HD-132K, NXG-HD-168
Size
-
Weight
-
Product Details

Ultrasonic power 600W / 900W

Frequency 68Khz / 75Khz / 100Khz / 132Khz / 168Khz while to pick you .

There is a wide range of choices to construct an efficient and economical cleaning device depending on the cleaning material .


1. High frequency dedicated oscillator

  High frequency dedicated oscillator of 68Khz~168Khz


2. Convenience

  Users KEY it is possible to operate the product alone operation, the operation is simple,


3. Self-diagnosis function

  It has a self-diagnosis function, so the operator can easily determine the cause of the failure


4. Check the oscillation data

  Separate instruments without operating frequency , power , in operation, such as the internal temperature DATA to determine


5.RS-485 communication

   Operation status monitoring and control in PLC through RS-485 communication



Specification

Name

Ultrasonic Generator NXG-HD

Model

NXG-HD-68K/75K/100K/132K/168K

Ultrasonic Frequency

68Khz/75Khz/100Khz/132Khz/168Khz

Ultrasonic Output

600W/900W

Ultrasonic Transducer

B.L.T Transducer

Oscillation Method

PLL

Input Voltage

AC220V/60Hz

Input Current

6A(at 1200W of output)

Product Size(mm)

310x440x130

Weight

About 12kg
