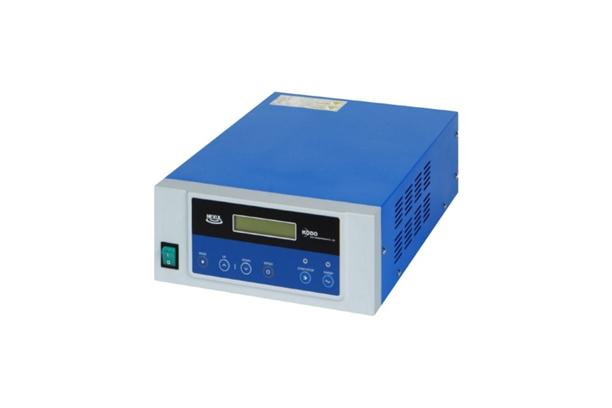

Ultrasonic unit and automatic control in automated equipment including ultrasonic cleaning function
Remote control using PC or PLC is possible, and oscillator and monitoring and various functions can be centrally controlled through RS-485 communication .
It is easy to manage as it can centrally monitor and control the factory line automation .
1.SWEEP function
Sweep has built-in features stripping and cleaning stains (Dead Zone) reduction
2. Operation function
Power setting , program operation , timer , fan operation temperature setting function
3. Remote control function
Function to remotely control ultrasonic ON/OFF
4. Mutual communication control function
Remote control using ultrasonic unit, PC, and PLC is possible for monitoring ,Multi control of frequency , time , output, etc. through RS-485
Specification
Sing Frequency | Name | NXGA-28K | NXGA-40K |
Model | NXG-A-28K-600W/900W/1200W | NX-GA-40K-600W/900W/1200W | |
Ultasonic Frequency | 28Khz | 40Khz | |
Oscillation Method | PLL Method | PLL Method | |
Auto Tuning Range | Within 3Khz | Within 3Khz | |
Ultrasonic Output | 600W/900W/1200W | 600W/900W/1200W | |
Ultrasonic Transducer | B.L.T Transducer | B.L.T Transducer | |
Input Voltage | AC220V/60Hz | AC220V/60Hz | |
Input Current | 6A (at 1200W) | 6A (at12000W) | |
Product Size(mm) | 310x440x130 | 310x440x130 | |
Weight | About 12Kg | About 12Kg |
