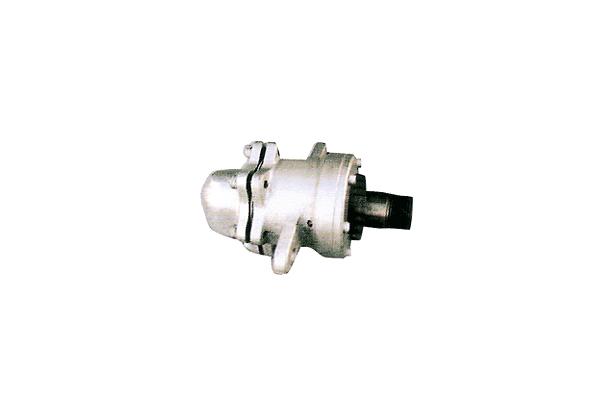

STRUCTURE

• SHAFT

Shaft rotates by attaching to rotation body including Roller, Drum. For the method of attachment, there are two kinds of (screw type) and [FLANGE type]. As taper screw for pipe of KS, as for direction, from the direction of Roller or Drum rotation to attach Rotary Joint, it's [left screw if clockwise) [right screw if counter-clockwise] In case of Flange, there's no relation with rotation direction of Shaft. In addition, in the middle of Shaft, there's sliding part of spherical surface.

• HEAD

It's the connect part of supply and discharge of fluid, and INNER PIPE is attached to compound. As for Inner Pipe, Taper screw for KS pipe is concluded if screw type, and screw direction of Inner Pipe corresponds to screw direction of Shaft. And, in case of Flange Type, only with right screw, Lock Nut is used as the PARALLEL PIPE THREADS.

• BODY

In the right & left of Body, there's a hole to install Stopper so prevents rotation of body for the initial rotation.
