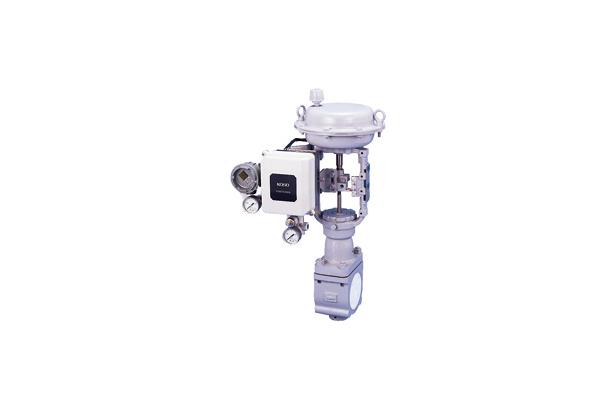

▶500R: Acid Resistant Type Globe Valves
This series provides globe type control valves for controlling corrosive and/or poisonous fluids. Body wetted parts are made of pure teflon and gland parts are completely sealed by bellows seal bonnet made of pure teflon.
Body is coverd by cast iron or stainless body cover which is resistant to shock form outside.
Specification
Body type | 500R |
Body size | 1/2"(15A) to 2"(50A) |
Body rating | JIS 10K Equivalent |
Fluid temperature | 0 to +150° |
Connections | Wafer:3/4 or Less, MFR Std:1 or More |
Body materials | Pure Teflon/Cover: FC250, SS400, SUS304 |
Trim materials | Pure Teflon |
Rangeability | 15:1 to 30:1 |
Flow characteristics | Eq%, Linear |
Seat Leakage | Bubbletight ANSI Class IV |
Actuator combination | 5200LA: Pneumatic Diaphragm Actuator 3500LB,3600LB: Solid State Electronic Actuator |
