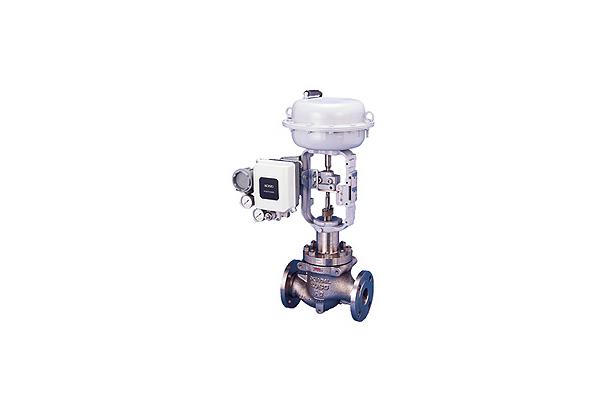

▶ 5200: Pneumatic Diaphragm Actuators
This Series provides high performance, high power diaphragm actuators of multi-spring type that are compact and light. Receiving pneumatic or electric signals, the unit balances the force created when diaphragm is air-pressured through positioner and the force of compressed spring, so that the output shaft is controlled and placed at a set position.
Control of position by pneumatic signals (20 to 100Kpa) directly applied on diaphragm is also possible. Combination with KOSO positioner provides high accuracy position control.
Specification
Type | Linear Stem Motion Type | |||||
5221LA | 5227LA | 5235LA | 524SLA 524LLA | 526SLA 526LLA | ||
Actuator size | 218 | 270 | 350 | 450 | 650 | |
Max. Output | N | 2185 | 3648 | 4315 | 7453 | 16475 |
N-m | - | - | - | - | - | |
Air supply KPa | 140, 300, 340 | 140, 300 | 300 | |||
Spring range Kpa | 20 to 100, 80 to 200, 120 to 300 | 20 to 100, 80 to 200 | 80 to 200 | |||
Max. stroke/angle | 20mm | 30mm | 40mm | 80mm | 110mm | |
Action | Direct Action or Reverse Action | |||||
Environment temp. | Standard type: -10 to +70°, Low temp.service: -40 to +40°, High Temp.service: 0 to +100° | |||||
Options | Manual handle, Limit SW, Positioner, Air-set etc. | |||||
Type | Rotary Stem Motion Type | ||||
5221RA | 5227RA | 5235RA | 524LRA | ||
Actuator size | 218 | 270 | 350 | 450 | |
Max. Output | N | - | - | - | - |
N-m | 46.4 | 116.2 | 183.2 | 553.7 | |
Air supply KPa | 300, 340 | 300 | |||
Spring range Kpa | 80 to 200, 120 to 300 | 20 to100, 80 to 200 | |||
Max. stroke/angle | 60° | ||||
Action | Direct Action or Reverse Action | ||||
Environment temp. | Standard type: -10 to +70°, Low temp.service: -40 to +40°, High Temp.service: 0 to +100° | ||||
Options | Manual handle, Limit SW, Positioner, Air-set etc. | ||||
