product Image
Pneumatic Cylinder Actuators
Model Name
6100LA
Data
-
Manufacturer information
provider logo
KOREA KOSO

Automatic Control Valve Manufacturer, Control Valve, Actuaotr, Filed Bus, Pump, Sensor

Problem with product info?
Update request
Manufacturer
KOREA KOSO
Brand
-
SKU
129676
Product Name
Pneumatic Cylinder Actuators
Model Name
6100LA, 6200LA, 6300LA
Size
-
Weight
-
Product Details

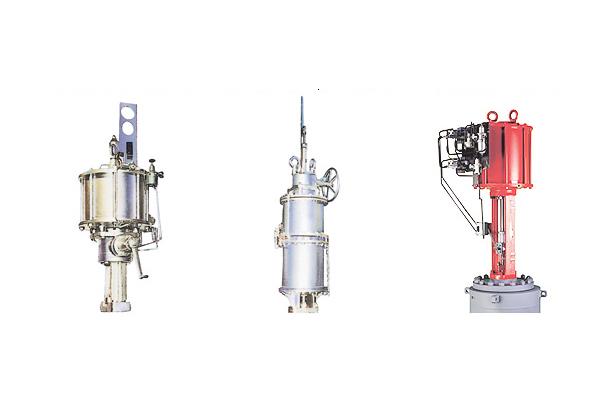

6100LA/6200LA/6300LA: Pneumatic Cylinder Actuators




6100LA

1 Piston type
Valve stem and actuator output shaft connection is inside the cylinder.


6200LA

2 Piston type
Valve stem and actuator output shaft connection is inside the cylinder.


6300LA

1 Piston type
Valve stem and actuator output shaft connection is outside the cylinder (in Yoke).



Specification


6100LA 6200LA

Type code

Double Acting type

6110LA

6116LA

6128LA

6136LA

6141LA

6154LA

6254LA

Size

100

160

280

360

415

540

540x2

Output N at 500KPa

3430

9310

29890

45570

62220

106820

213640

Max. stroke (mm)

60

210

310

610

810

810

1360

Air supply

Double Acting: 300 to 500kPa, Spring Return: 500kPa

Action

Direct Action or Reverse Action

Environment temp.

Standard type: -20 to +60°, Low temp.service:-50 to +60°, High Temp.service: 0 to +100°

Options

Manual handwheel, Limit Switch, Positioner, Air-set, Speed controller etc.




6300LA

Type code

Double Acting type

Spring Return type

6315LA

6320LA

6330LA

6345LA

6360LA

6330LA

6345LA

6360LA

Size

150

200

300

450

600

300

450

600

Output N at 500KPa

7938

14308

32242

73010

129850

7644

17248

30576

Max. stroke (mm)

210

210

210

410

410

210

210

210

Air supply

Double Acting: 300 to 500kPa, Spring Return: 500kPa

Action

Direct Action or Reverse Action

Environment temp.

Standard type: -20 to +60°, Low temp.service:-50 to +60°, High Temp.service: 0 to +100°

Options

Manual handwheel, Limit Switch, Positioner, Air-set, Speed controller etc.

KOREA KOSO
Automatic Control Valve Manufacturer, Control Valve, Actuaotr, Filed Bus, Pump, Sensor
Our goal in manufacturing is to guarantee high quality 100% of the time. To achieve this, we use only the best hardware and software to create advanced, comprehensive production systems with CAD/CAM automation lines, unmanned transport systems, production control systems and other sophisticated processes. In addition to the high performance and high quality standards of products that bear the KOSO brand name, our clients around the world value our abundant experience in meeting their demands for superior technology. For the members of the KOSO Group, it is clear that our firm determination to refine our technological prowess, strengthen our processes, introduce advanced equipment and strive to meet the challenges for the future has made us what we are today. The KOSO Group is adding electronics-related technology to its mastery of measuring, mechanical and electrical technologies, as we continue to meet the challenging needs of the fast-growing family of satisfied KOSO customers.
Inquiry
