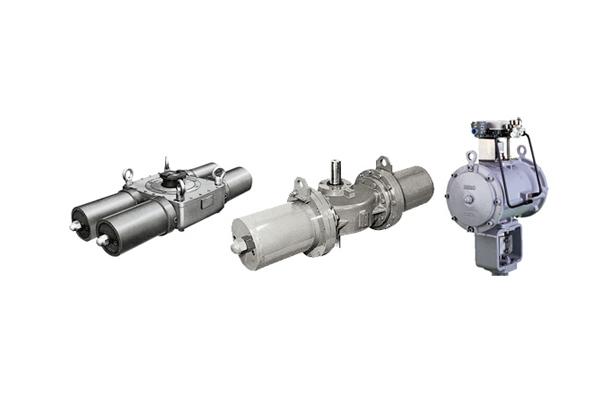

▶ 6400RB/6500RA/7300RB: Pneumatic Cylinder Actuator
6400RB
- Large Torque Cylinder
- 4 Piston Scotch Yoke type Pneumatic Actuator
- Output Shaft Rotating angle/90° or 60°
6500RA
- Middle Torque Cylinder
- 2 Piston Scotch Yoke type Pneumatic Actuator
- Output Shaft Rotating angle/90° or 60°
7300RB
- Middle Torque Cylinder
- 2 Piston Rack & Pinion Pneumatic Actuator
- Output Shaft Rotating angle/90° or 60°
Specification
6400RB
Type code | Double Acting type | |
6420RB | 6428RB | |
Size | 200 | 280 |
Output N·m at 500KPa | 9370 | 20500 |
Air supply | Double Acting: 300 to 500 KPa, Spring Return: 300, 400, 500 KPa | |
Action | Direct Action or Reverse Action | |
Environment temp. | Standard type: -20 to +60°, Low temp.service: -50 to +60°, High Temp.service: 0 to +100° | |
Options | Manual handwheel, Limit Switch, Positioner, Air-set, Speed controller, Lock Valve, Lock up Valve, Solenoid Valve etc. |
6500RA
Type code | Double Acting type | Spring Return type | ||||
6517RA | 6520RA | 6528RA | 6517RA | 6520RA | 6528RA | |
Size | 170 | 200 | 280 | 200 | 280 | 360 |
Output N·m at 500KPa | 1850 | 3200 | 5022 | 907 | 2231 | 4413 |
Air supply | Double Acting: 300 to 500 KPa, Spring Return: 300, 400, 500 KPa | |||||
Action | Direct Action or Reverse Action | |||||
Environment temp. | Standard type: -20 to +60°, Low temp.service: -50 to +60°, High Temp.service: 0 to +100° | |||||
Options | Manual handwheel, Limit Switch, Positioner, Air-set, Speed controller, Lock Valve, Lock up Valve, Solenoid Valve etc. |
7300RB
Type code | Double Acting type | Spring Return type | ||||||
7317RB | 7323RB | 7328RB | 7337RB | 7317RB | 7323RB | 7328RB | 7337RB | |
Size | 170 | 235 | 280 | 375 | 170 | 235 | 280 | 375 |
Output N·m at 500kPa | 637 | 1712 | 2962 | 6987 | 212 | 589 | 995 | 2332 |
Air supply | Double Acting: 300 to 500 KPa, Spring Return: 300, 400, 500 KPa | |||||||
Action | Direct Action or Reverse Action | |||||||
Environment temp. | Standard type: -20 to +60°, Low temp.service: -50 to +60°, High Temp.service: 0 to +100° | |||||||
Options | Manual handwheel, Limit Switch, Positioner, Air-set, Speed controller, Lock Valve, Lock up Valve, Solenoid Valve etc. |
