product Image
Electro-pneumatic Positioner
Model Name
-
Data
-
Manufacturer information
provider logo
KOREA KOSO

Automatic Control Valve Manufacturer, Control Valve, Actuaotr, Filed Bus, Pump, Sensor

Problem with product info?
Update request
Manufacturer
KOREA KOSO
Brand
-
SKU
129684
Product Name
Electro-pneumatic Positioner
Model Name
-
Size
-
Weight
-
Product Details

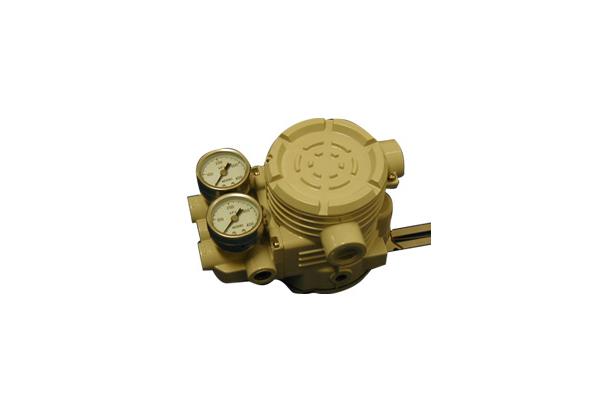

▶EP1000: Electro-pneumatic Positioner

KOSO'S EP1000 complies with FF/HART & KOSO Stand-ard. With this Series, digital calibration provides easy and yet accurate adjustments for inherent response character-istics, zero/span, etc.

The unit is mountable on both spring return and double-acting actuators for either rotary or linear action. Bus-powered. Function block incorporated is AO & PID.



Specification

Application

for Single Action

for Double Action

Function block

AO, PID

Power source

Bus Powered

Linearity

+/-1.0%

+/-1.5%

Hysteresis

0.5%

0.8%

Response level

0.1%

0.2%

Air consumption

5 Nl at 140 kPa

15 Nl at 400 kPa

Max. capacity

175 Nl at 140 kPa

400 Nl at 400 kPa

Max. stroke/rotation

100mm/90°

Enclosure

IP65/Exd II CT6

Environment temp.

-20 to 80°


KOREA KOSO
Automatic Control Valve Manufacturer, Control Valve, Actuaotr, Filed Bus, Pump, Sensor
Our goal in manufacturing is to guarantee high quality 100% of the time. To achieve this, we use only the best hardware and software to create advanced, comprehensive production systems with CAD/CAM automation lines, unmanned transport systems, production control systems and other sophisticated processes. In addition to the high performance and high quality standards of products that bear the KOSO brand name, our clients around the world value our abundant experience in meeting their demands for superior technology. For the members of the KOSO Group, it is clear that our firm determination to refine our technological prowess, strengthen our processes, introduce advanced equipment and strive to meet the challenges for the future has made us what we are today. The KOSO Group is adding electronics-related technology to its mastery of measuring, mechanical and electrical technologies, as we continue to meet the challenging needs of the fast-growing family of satisfied KOSO customers.
