Product Explanation

• Mechanical strain generated from a body of rotation can be delivered, not bothring cables of other equipments.
• Applicable for various field.
• Slipring Ampere Range : 10A ~ 300A
• Interal design not making problem of delivering oil pressure, power, signal, and image. Easy and simple installment and high-durability.

The drawings of Multi Center Joint

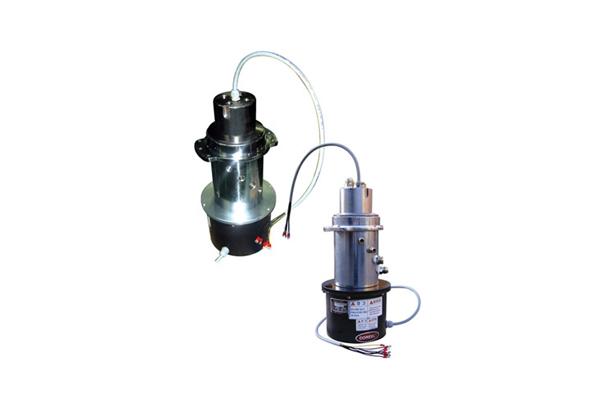

Multi Center Joint

• 1" 2PORT, 3/8" 2PORT(210㎏/㎠)
• Electric cable specification : Power AVS 3.5SQ 2P / Signal AVS 0.5SQ 15P
• Length of input cable (the bottom of Joint) 5.3m
• Length of output cable (the top of Joint) 2.2m
• Cable with wire protector pipe.
• Cable end : MS CONNECTOR (MS 3106 28-11 22PIN+MS 3057-16A)

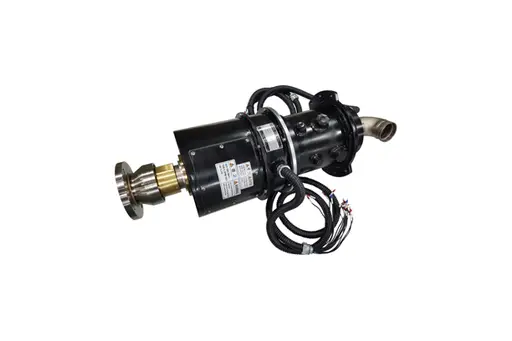

Center Joint

Center Joint of Fire truck has been designed for special prupose to supply oil pressure, water pressure and supply power and signal to aerial (turntable)ladder as integrated product.

The drawings of Center Joint

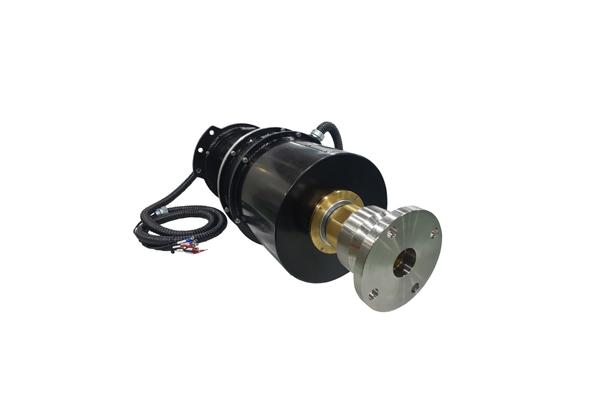

Center Joint 1

• Oil portt : 2 ~ 6 Port
• Water Port : 2" ×1 Port
• Slip Ring : 2 ~ 10A/3~25p
• working pressure : 50 ~ 290㎏/㎠

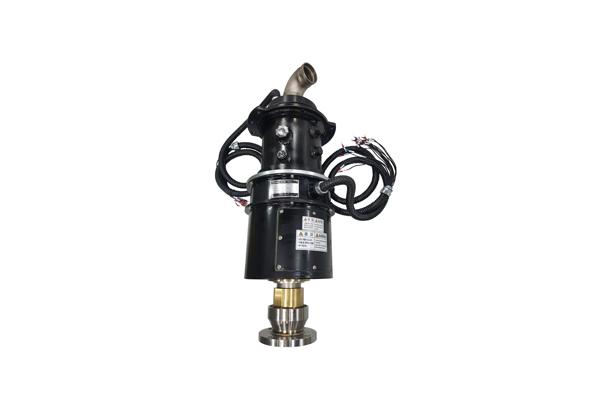

Center Joint 2

• Shaft can be acceptable based on user's request(2",3",4" etc)
• Material of Shaft is uses stainless steel to prevent from rusting.
• Multi center joint for the application of power, Signal and Hydraulic.
• Customized specication is acceptable.
