Bichaemega system is
OMEGA Deck system is a stable structural system using Kaiser Truss. At conventional deck system, a concrete part locates at center in cross section but don’t have any structural function. To remove this part, a bended steel plate of same material (so called ‘OMEGA’) is inserted at a connection groove between lattice and lower steel plate without fixation. By this, void section is formed and efficiency of slab is maximized.
Benefits of Bichaemege!
1. High Quality
Stable structural system using Truss Joist
Identical and high-quality product by factory production
Maintenance of the thickness of Sheath and Spacing of Rebar
2. Cost Down
Reduction of slab concrete
Decrease of foundation, column and beam due to decrease of self-load of slab
3. Safety
Low weight in favor of safe construction
Easy for safe management : reduction of field operations, simple & repetitive tasks
Good for use due to uniformly high quality by factory production
4. Planning
Applicable with S/RC/SRC
Optimized planning for various conditions
5. CO2 Reduction
Reduction of necessary concrete and reinforcing bar
Decrease in industrial waste
6. Time Saving
No need of cast disassembling ( disassembling cast )
Early starting of following processes after concrete casting
ㆍBichaemega Type
Type | Ωn1a | Ωn1 | Ω1 | Ωn2a | Ωn2 | Ω2 | Ωn3 | Ω3 | Ωn4a | Ωn4 | Ω4 | Ω5 |
Upper steel-bar | D10 | D10 | D10 | D13 | D13 | D13 | D13 | D13 | D12 | D12 | D12 | D12 |
Lower steel-bar | 2-D7 | 2-D8 | 2-D10 | 2-D7 | 2-D8 | 2-D10 | 2-D12 | 2-D13 | 2-D7 | 2-D8 | 2-D10 | 2-D12 |
ㆍCross section of Bichaemege

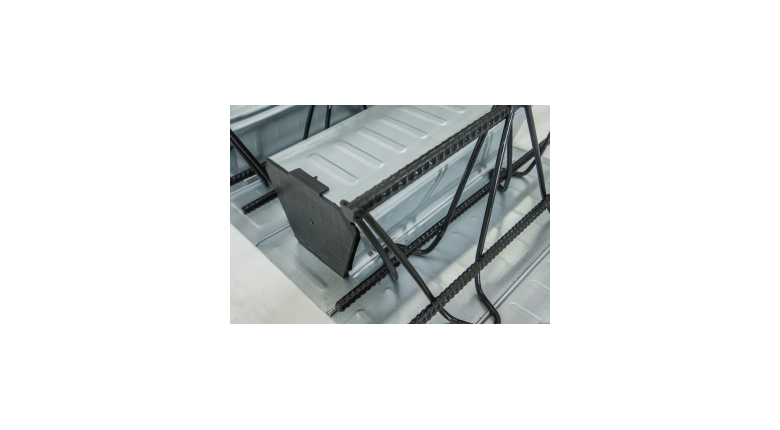

ㆍBichaemega View
