Two Day Light Outsole Press
Model Name
TDL Press
Series
Shoe Machine - Outsole Part
Data
-
Manufacturer information
provider logo
KUKDONG MACHINERYShoe making machine, Automotive accessories production facility, Shipbuilding apparatus facility and more
Problem with product info?
Update request
Manufacturer
KUKDONG MACHINERY
Brand
-
SKU
47760
Product Name
Two Day Light Outsole Press
Model Name
TDL Press
Size
-
Weight
-
Product Details

Feature

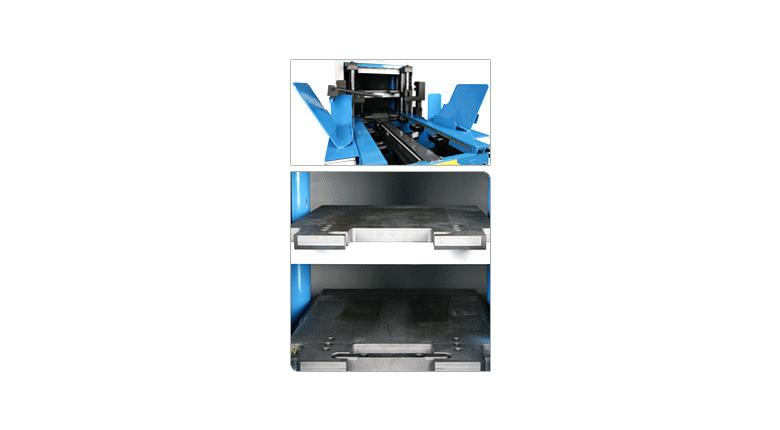

This machine is 4 point pillar Frame structure and consists main cylinder, upper plate, medium plate, heat plate, hydraulic system, and electric system. This machine manufactures outsole products by installing the heat plate between upper plate and medium plate and by attaching molding between hot plates. and heat source is available for electrical heating element, heat medium and steam.



Specification

ㆍDimension : 1,000W x 2,650L x 2,050H

ㆍWeight : 2,300kg

ㆍPower : 150Ton

ㆍMax Pressure : Max 180kg/㎠

ㆍElectric Capacity : 43kw

ㆍMain Cylinder : Dimension-Φ300mm l Stroke-340mm

ㆍAssist Cylinder(2Set) : Dimension-Φ50mm l Stroke-340mm

ㆍWorktable Cylinder : Dimension-Φ40mm l Stroke-248mm

ㆍSliding Motor : Flux-Φ80cc/rev l Torque-9.1kgfm

ㆍHydraulic Part : Motor-7.5HP x 6P l Pump-16.7ℓ/min l Tank-140ℓ
