Product Features
- A fast and powerful Cutter adopting a multilevel gear and a flywheel.
- To put emphasis on safety using an iron guide in cutting.
- The blades are made of special material seldom wear away.
You can also use 4 sides of the blade with I set.
- Strong and firm with a durable driving gear and a powerfully welded structure.
Lightweight, easily portable and applicable in any places.
- So easily controlled with one-touch system. Even though a nonprofessional can operate it.
Product Specifications
Model | Max.bar dia | Motor | Electrics | Blade width | Dimension (m/m) | Weight | Remarks | ||
---|---|---|---|---|---|---|---|---|---|
L | W | H | |||||||

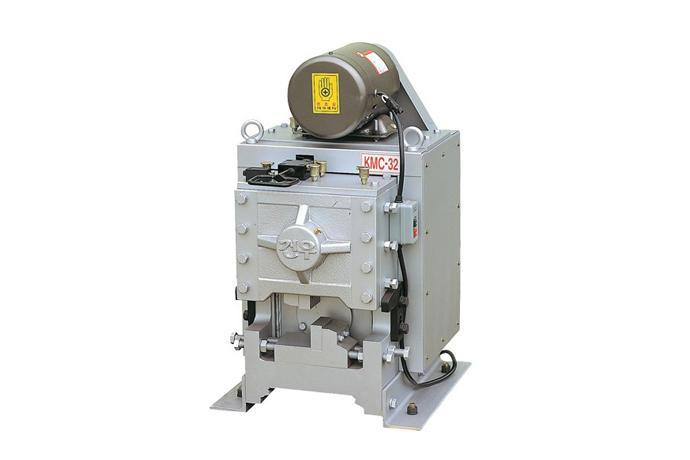

KMC-32 | 32mm | 2.2kw/3HP | 220/380V 50/60HZ 1Phase 3Phase |
85mm | 480 | 600 | 920 | 570kg |
Efficiency / No.of bars at one time
Model m/m | D10 | D13 | D16 | D19 | D22 | D25 | D29 | D32 | Remarks |
---|---|---|---|---|---|---|---|---|---|
KMC-32 | 7 | 5 | 4 | 3 | 2 | 2 | 1 | 1 | SD 400 |
