Product Features
- A fast and powerful Cutter adopting a multilevel gear and a flywheel.
- Emphasis on safety using an iron guide in Cutting.
- The blades made of special material seldom wear away.
You can also use 4 sides of the blade with I set.
- Strong and firm with a durable driving gear and a powerfully welded structure.
Lightweight, easily portable and applicable in any place.
- So easily controlled with one-touch Machine that even a nonprofessional can operate it.
- The lubricants filled in the internal gear of crank and the driving make them free of gear friction and noise while in operation
- Since the blade is as wide as 165cm this is more than appropriate in the simple automation operation
Product Specifications
Model | Max.bar dia | Moter | Electrics | Blade width | Dimension (m/m) | Weight | Remarks | ||
---|---|---|---|---|---|---|---|---|---|
L | W | H | |||||||

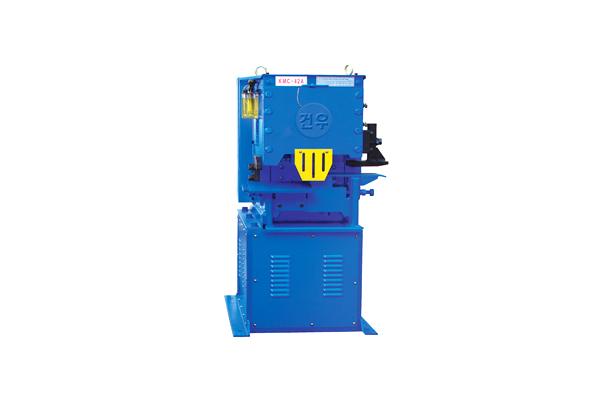

KMC-42A | 41mm | 3.75kw/5HP | 220V/380V 50/60HZ 3Phase | 166mm | 980 | 710 | 1,470 | 1,150kg |
Efficiency / No.of bars at one time
Model m/m | D10 | D13 | D16 | D19 | D22 | D25 | D29 | D32 | D41 | Remarks |
---|---|---|---|---|---|---|---|---|---|---|
KMC-42A | 14 | 11 | 7 | 5 | 4 | 2 | 1 | 1 | 1 | SD 400 |
