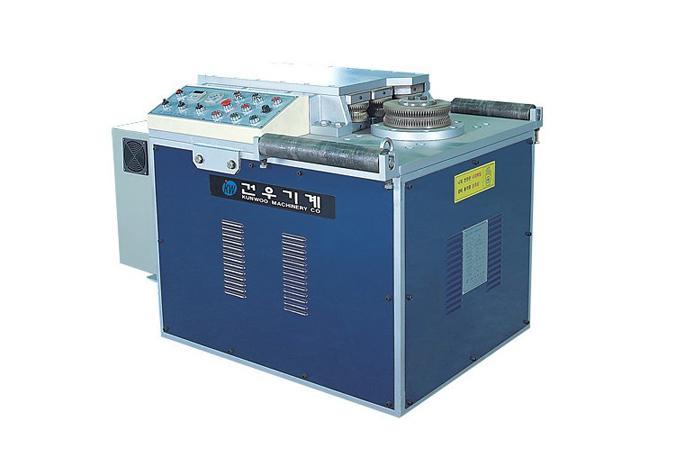

Rebar Processing Machine Manufacturer, Rebar Cutter, Rebar Bender, Rebar Ring Bender and more
Product Features
- Maximized power by powerful hydraulic works.
- Compatible use for both U and Eing bending.
Roller
Product Specifications
Model | Max.bar dia | Power | Electrics | Bending speed | Dimension (m/m) | Weight | Remarks | ||
---|---|---|---|---|---|---|---|---|---|
L | W | H | |||||||
KMU-32 | 32mm | 7.7kw | 220/380V 60HZ 3Phase | 15˚~ 360˚ | 1,230 | 800 | 878 | 840kg | Oil tank70ℓ |
Bending Foam
U-BAR | Min : 300mm | RING-BAR | Min : 300mm | ||
---|---|---|---|---|---|
Max : Infinity | Max : 6,000mm |
