Product Features

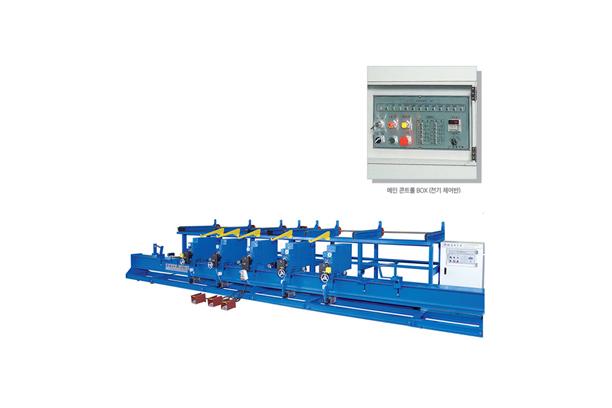

- Dividing the existing 5 head bending machine (KBS-25-2-5) in separate 2 head & 3 head, it is possible to execute its two independent bending works. (It is the high tech Automatic Rebar Bending System that has an capability to perform as the role of two bending machines, by maximizing a spatial application & operational efficiency.)
- The productivity of rebar bending may increase in comparing with the standing system by 4 through 7 times more.
- When it is needed to replace the roller during operation, you can change it by adjusting Sub Control Box without having to go to Main control Box.
- This is easy to control so that even the unskilled workman can operate it with facility.
- It is easy to change the form of rebar bending into various other types (Refer to the kinds of steel bending)
- All the parts and components of the entire machine can be manufactured 100% domestically. So, we can provide all the necessary parts and after-sales services.
- A perfect automatic rebar processing system can be achieved with the combination of automatic rebar cutting and bending system.
- The head part of the machine can be moved through the special conveyor.
Product Specifications
| Power consumption (kw) | 12kw | Head unit | 1.8kw x 5 |
|---|---|---|---|
| Supple table | 0.75kw x 1 | ||
| Compressor | 2.25kw ×1 | ||
| Electric | 220V / 380V 3Phase | ||
| Bending capacity | D10~D16 | ||
| Bending angle | 15˚~ 180˚ | ||
| Working speed | 4sec/180˚ 9.5rpm | ||
| Supply table speed | 7.2m/min | ||
| Loading capacity (kg) | 2,000kg | ||
| Dimensions (m/m)(L×W×H) | 8,000mm×1,840×1,400 | ||
| Weight (kg) | 3,600kg | ||
Efficiency / No.of bars at one time
| Bar dia (mm) | D10 | D13 | D16 | Remarks |
|---|---|---|---|---|
| Bending Q’TY | 7 | 5 | 2 | SD400 |
| Available roller specs | Ø35 | Ø53 | Ø59 | SD400 |
Bending patterns
Plan
