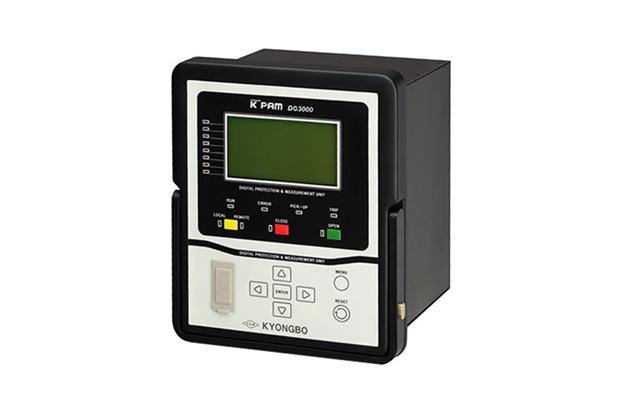

product Image
분산전원보호용 복합형 보호계전기
Model Name
K-PAM DG3300
Series
디지털 계전기
Data
카탈로그(Catalog)-경보전기-디지털계전기-선로보호용 복합형 보호계전기
Manufacturer information
provider logo
KYONGBO ELECTRIC

Power distribution equipment manufacturer, Indicating electric meter, Instrument transformer, Power converter, Protective relay and more

Problem with product info?
Update request
Manufacturer
KYONGBO ELECTRIC
Brand
-
SKU
135649
Product Name
분산전원보호용 복합형 보호계전기
Model Name
K-PAM DG3300
Size
-
Weight
-
Product Details

K-PAM DG3300은 한전의 분산전원 연계선로 보호협조 기준을 만족하는 분산전원 연계선로 보호용 복합형 계전기로서 계통의 접지시스템(직접 접지,저항접지 등)에 관계없이 분산전원 연계선로(열병합 발전, 태양광발전,풍력발전,연료전지발전) 및 분산전원 발전기의 후비보호 용으로 사용하고 특히, 전력계전기(32P, 32Q) 보호요소 및 동기투입이 가능한 동기검출 계전요소(SYNC)를 내장하고 있고, 2 Bank 이상 병렬 운전조건에서 비상 변압기 투입으로 발생한 돌입전류로 인한 계전기 오동작 방지를 위해 돌입전류 검출요소(Inrush)도 내장하고 있어 확실한 운전을 보장합니다.



주요사양






동작특성






계측기능






외부결선






외형치수
