Pipe Facing Machine
Model Name
Tube 400
Series
Manual Facing M/C
Data
-
Manufacturer information
provider logo
KYOUNGDONG

Manufacturer of Sawing M/C & Pipe beveling M/C

Problem with product info?
Update request
Manufacturer
KYOUNGDONG
Brand
-
SKU
24745
Product Name
Pipe Facing Machine
Model Name
Tube 400
Size
-
Weight
-
Product Details

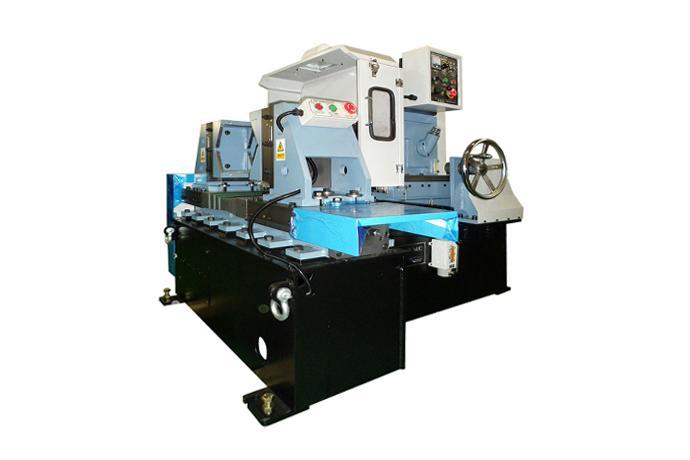

Pipe Facing Machine

High productivity which is provided at the best cost.


Feature

•KYOUNG DONG's Facing Machine is an all-purpose facing machine of cross-head type endowed with modernity developed by rich ideas and excellent technology.
 A wide range of workings can be made including pipe and tube ends, pipe outside diameter surfaces, joint flange surfaces, etc. and preparation and centering are very easy because the facing head is freely movable to fit the part of the material to be cut.

•They are good at working pipe end facing for medium or small diameter pipe.


Specification

Description

unit

Tube 400

Cutting Diameter

inch

3" ~ 16"

Face Plate Diameter

mm

420

Spindle R.P.M

r.p.m

40 ~ 200

Spindle motor Capacity

kw

5.5

Feed Strokes

mm

150

Manual Feed

mm/rev

4

Vice Clamping Range

inch

3" ~ 16"

Cerntering Adjust by manual

±5mm(2mm/rev)

Dimension

Length

mm

1520

Width

mm

1280

Height

mm

1470

Centering Height

mm

900

Net Weight

kg

1800



KYOUNGDONG
Manufacturer of Sawing M/C & Pipe beveling M/C
Since its founding 40 years making a good machine. Since founded in 1973, our company has made a great effort to become a Leading company in the Cutting, Beveling machinery which are widely used In the various pipes. Our products are recognized as a key products, widely used in the fields of Petroleum, natural gas, power supply construction, boiler and nuclear power. Our products are exported to worldwide and famous for high quality and Famous brand at home and abroad. The equipment are the main equipment to make a spool on the home and abroad oil chemical plant.
