Manufacturer of Sawing M/C & Pipe beveling M/C
Feature
•Because is column structure, this machine can be stable job and heavy cutting jobs.
•By using mono-lever switches easy to use.
•By the use of seamless steel pipe block the leak.
•Specially designed carbide saw blade guide.
•Attached the various cover for the protection of device and the safety of the operating.
•Low noise and excellent cutting ability.
Specification
Description |
unit |

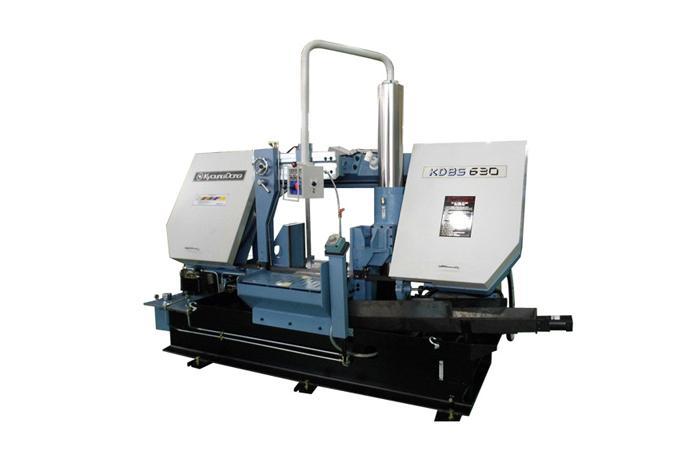

KDBS 630 |
|
Capacity |
Round bar |
mm |
Ø630 |
Rectangle |
mm |
630 × 700 |
|
Saw blade |
Length |
mm |
6650 |
Width |
mm |
41 |
|
Thickness |
mm |
1.3 |
|
Blade Speed |
m/min |
30 ~ 110 |
|
Motor |
Drive motor |
kw |
5.5 |
Hydraulic |
kw |
2.2 |
|
Coolant |
kw |
0.18 |
|
Tank capacity |
Hydraulic |
Liter |
60 |
Coolant |
Liter |
60 |
|
Dimension |
Length |
mm |
1320 |
Width |
mm |
3500 |
|
Height |
mm |
2280 |
|
Table height |
mm |
680 |
|
Weight |
kg |
2300 |
