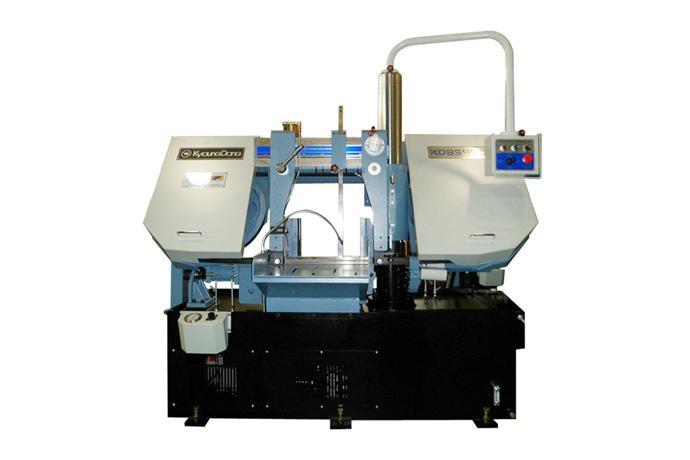

Metal Cutting Band Sawing Machine
Model Name
KDBS 320A(NC)/450A(NC)
Series
Auto(NC) Band Saw Machine
Data
-
Manufacturer information
provider logo
KYOUNGDONGManufacturer of Sawing M/C & Pipe beveling M/C
Problem with product info?
Update request
Manufacturer
KYOUNGDONG
Brand
-
SKU
24758
Product Name
Metal Cutting Band Sawing Machine
Model Name
KDBS 320A(NC)/450A(NC)
Size
-
Weight
-
Product Details

Metal Cutting Band Sawing Machine


Feature

•Because is column structure, this machine can be stable job and heavy cutting jobs.

•By using mono-lever switches easy to use.

•By the use of seamless steel pipe no leak.

•Specially designed carbide saw blade guide.

•Attached the various cover for the protection of device and the safety of the operating.

•Low noise and excellent cutting ability.

•Automatic head elevation control.

•Consist of column type for smooth and accurate cutting.


Specification

Description

unit

KDBS 320A(NC)

KDBS 450A(NC)

Capacity

Round bar

mm

Ø320

Ø450

Rectangle

mm

320 × 320

450 × 450

Saw blade

Length

mm

3660

4670

Width

mm

27

41

Thickness

mm

0.9

1.3

Blade Speed

m/min

36, 54, 72, 90

36, 54, 72, 90

Motor

Drive motor

kw

3.75

3.75

Hydraulic

kw

1.5

1.5

Coolant

kw

0.06

0.06

Tank capacity

Hydraulic

Liter

30

40

Coolant

Liter

50

60

Dimension

Length

mm

1870

2280

Width

mm

1780

2160

Height

mm

1660

1960

Table height

mm

680

680

Weight

kg

1500

2100



KYOUNGDONGManufacturer of Sawing M/C & Pipe beveling M/C
Since its founding 40 years making a good machine. Since founded in 1973, our company has made a great effort to become a Leading company in the Cutting, Beveling machinery which are widely used In the various pipes. Our products are recognized as a key products, widely used in the fields of Petroleum, natural gas, power supply construction, boiler and nuclear power. Our products are exported to worldwide and famous for high quality and Famous brand at home and abroad. The equipment are the main equipment to make a spool on the home and abroad oil chemical plant.
