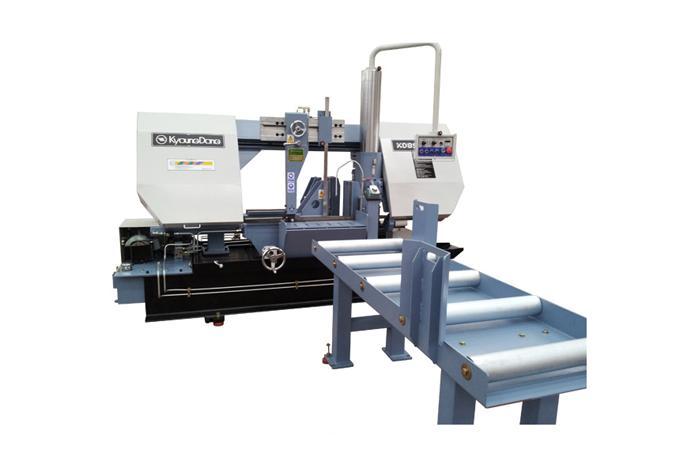

Manufacturer of Sawing M/C & Pipe beveling M/C
Feature
•Because is column structure, this machine can be stable job and heavy cutting jobs.
•By using mono-lever switches easy to use.
•By the use of seamless steel pipe no leak.
•Specially designed carbide saw blade guide.
•Attached the various cover for the protection of device and the safety of the operating.
•Low noise and excellent cutting ability.
•Automatic head elevation control.
•Consist of column type for smooth and accurate cutting.
Specification
Description |
unit |
KDBS 630A(NC) |
|
Capacity |
Round bar |
mm |
Ø630 |
Rectangle |
mm |
630 × 700 |
|
Saw blade |
Length |
mm |
6650 |
Width |
mm |
41 |
|
Thickness |
mm |
1.3 |
|
Blade Speed |
m/min |
30 ~ 110 |
|
Motor |
Drive motor |
kw |
5.5 |
Hydraulic |
kw |
2.2 |
|
Coolant |
kw |
0.18 |
|
Tank capacity |
Hydraulic |
Liter |
60 |
Coolant |
Liter |
80 |
|
Dimension |
Length |
mm |
2300 |
Width |
mm |
3500 |
|
Height |
mm |
2280 |
|
Table height |
mm |
680 |
|
Weight |
kg |
3500 |
