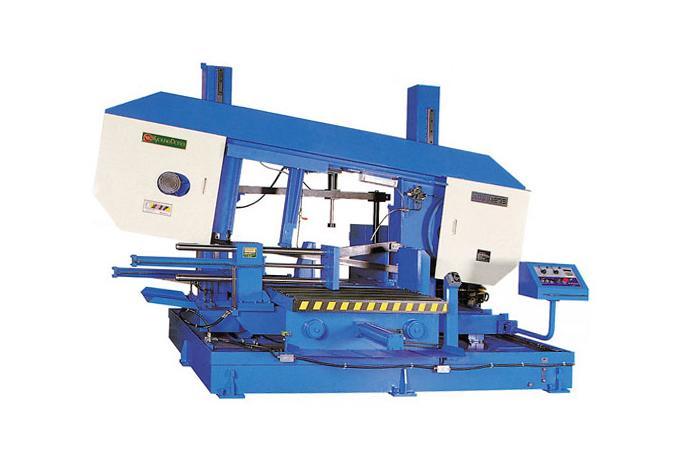

Manufacturer of Sawing M/C & Pipe beveling M/C
Feature
•Because is double-column structure, this machine can be stable job and heavy cutting jobs.
•Use square pipe to the main column to enhance stiffness.
•Use LM SYSTEM for precision cutting and operations.
•By the use of seamless steel pipe block the leak.
•Specially designed carbide saw blade guide.
•Attached the various cover for the protection of device and the safety of the operating.
•Low noise and excellent cutting ability.
Specification
Description |
unit |
WOW 1275 |
|
Capacity |
Round bar |
mm |
Ø200 ~ Ø750 |
Rectangle |
mm |
1200 × 750 |
|
Saw blade |
Length |
mm |
8800 |
Width |
mm |
67 |
|
Thickness |
mm |
1.6 |
|
Blade Speed |
m/min |
20 ~ 100 |
|
Motor |
Drive motor |
kw |
12.6 |
Hydraulic |
kw |
3.75 |
|
Coolant |
kw |
0.18 |
|
Tank capacity |
Hydraulic |
Liter |
60 |
Coolant |
Liter |
60 |
|
Dimension |
Length |
mm |
2089 |
Width |
mm |
4120 |
|
Height |
mm |
2959 |
|
Table height |
mm |
767 |
|
Weight |
kg |
7000 |
