Manufacturer of Sawing M/C & Pipe beveling M/C
Feature

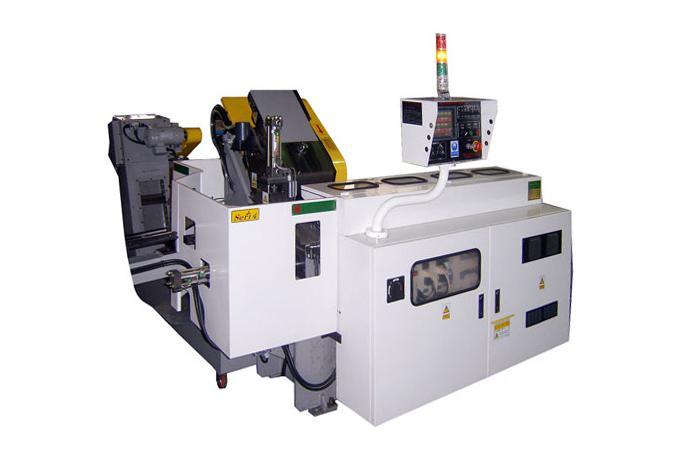

•High-speed precision circular saw machine / Until round bar cutting 100mm.
•High-resolution 7*inch touch screen.
•Error display function automatically detects problems.
•Residues by laser sensors and remove programs feature.
Specification
Description |
unit |
Seri 100 |
|
Cutting Capacity |
Round |
mm |
Ø20 ~ Ø100 |
Square |
mm |
20 ~ 80 |
|
Work Length |
mm |
3000 ~ 6000 |
|
Auto Cutting Length |
mm |
10 ~ 9999 |
|
First Cutting length |
mm |
10 ~ 90 |
|
Remain length |
mm |
55 |
|
Saw blade(Carbide Tip) |
Outdia |
mm |
360 |
Bore |
mm |
50 |
|
Thickness |
mm |
2.6 |
|
Speed |
r.p.m |
50 ~ 130 |
|
Main motor |
kw |
11 |
|
Saw blade feeding system |
AC Servo |
||
Rapid speed |
m/min |
12 |
|
Cutting speed |
m/min |
0 ~ 3 |
|
Cutting length input |
Touch panel |
||
Work feed system |
Ac Servo |
||
Feed motor |
kw |
1.5 |
|
Hydraulic motor |
kw |
2.2 |
|
Work supply table |
Loading weight |
kg |
4000 |
Loading width |
mm |
1300 |
|
Dimesion |
Loading heigth |
mm |
1000 |
Total length |
mm |
6400 |
|
Machine length |
mm |
2100 |
|
Width |
mm |
2900 |
|
Height |
mm |
1720 |
|
Weight |
kg |
3600 |
