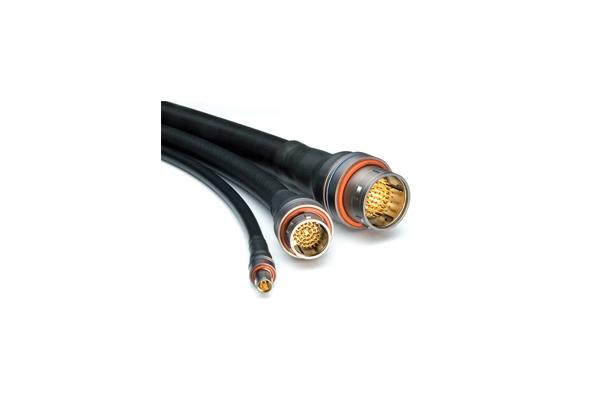

INDUSTRIAL WATERPROOF PUSH-PULL CONNECTORS
LEMO E-Series IP68 connectors are used in military applications, medical devices, oil and gas applications, the public sector, industrial control, and test & measurement environments. All models of this Series are waterproof and watertight when mated and correctly assembled to an appropriate cable to give a protection index of IP68 as per IEC 60529 standard (IP66 in unmated condition). Self-latching IP68 connectors with stepped inserts for alignment (of multipole version) and rugged housing for extreme working conditions.
Features
- Push-Pull self-latching for secure connections
- 7 sizes / 22 shell styles
- Stepped inserts for blind mating
- Temp. range -55°C to 200°C
- Solder or print contacts
- Shielding: >95dB at 10Mhz / >80dB at 1GHz
- UL listed
Materials & Finishes
Electrical Data
Mechanical
Note: the various tests have been carried out with FFA and ERA connector pairs, with chrome-plated brass shell, PEEK insulator and silicone O-ring.
1) minimum operating temperature is -20°C for sockets fitted with an FPM (Viton®) O-ring.
2) IP68 achieved providing that the cable is perfectly circular and that assembly process ensures a high integrity seal.
