RF Feeder System - Indoor/Outdoor Transmission Line
Model Name
-
Series
Telecommunication
Data
Indoor/Outdoor Transmission Line
Manufacturer information
provider logo
LS CABLE & SYSTEM

Industrial special cable and Industrial material manufacturer, Underwater cable, Superconducting cable, Ultra high pressure cable, Communication cable and more

Problem with product info?
Update request
Manufacturer
LS CABLE & SYSTEM
Brand
-
SKU
48219
Product Name
RF Feeder System - Indoor/Outdoor Transmission Line
Model Name
-
Size
-
Weight
-
Product Details

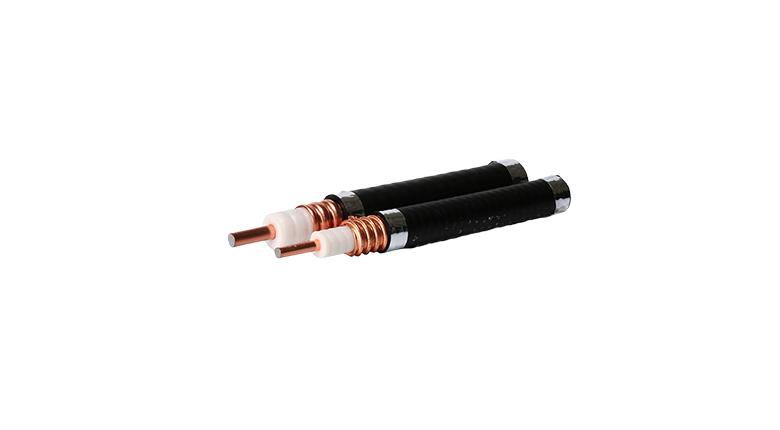

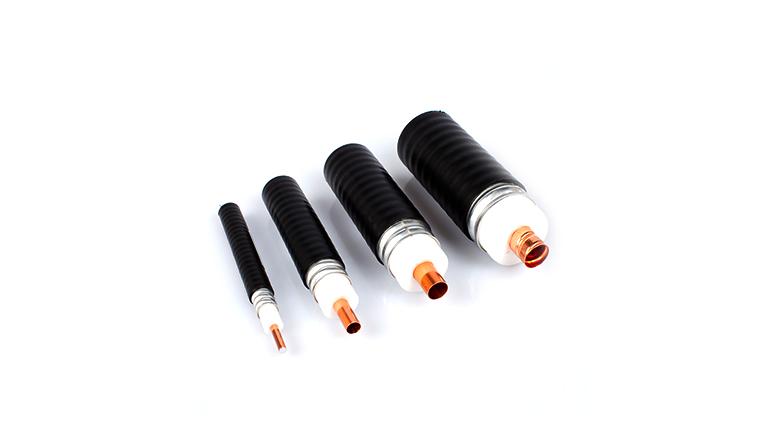

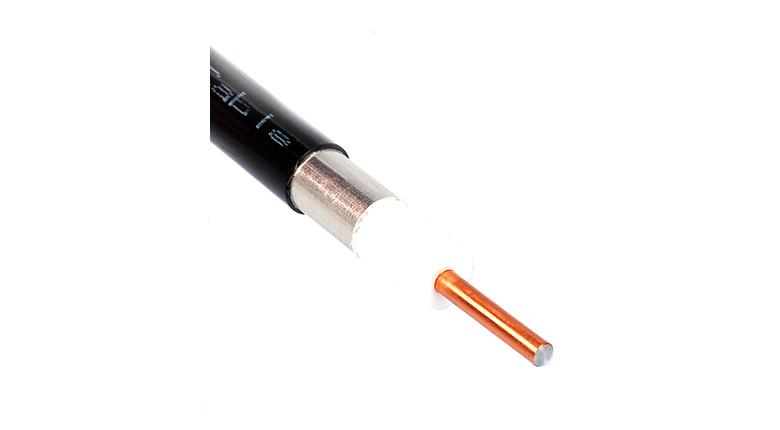

The antenna feeder coaxial cables used for RF communication systems incorporate high foaming polyethylene insulation technology to minimize signal loss. They have excellent electric features such as low damping and reflection coefficient. Furthermore, they have high flexion features due to high flexibility.
To meet the usage environment needs, flame-resistant polyethylene has been applied as a safeguard against fire hazards. Flame and fire-resistant sheaths are also used.



Types and purposes

• Types
  -  HFC Series: HFC (-FR) 12D, HFC (-FR) 22D, HFC (-FR) 33D, HFC (-FR) 42D
  -  HFSC Series: HFSC (-FR) 6D, HFSC (-FR) 10D, HFSC (-FR) 12D, HFSC (-FR) 22D
  -  HFASC Series: HFASC (-FR) 10D, HFASC (-FR) 12D
  -  HFSC Series: HFAC (-FR) 12D, HFAC (-FR) 22D

• Purposes
  - Main feeder for mobile communication base stations
  -  In-building distribution system
  -  Various wireless communication system antenna feeder lines



Benefits

Structurally, mechanically stable. High quality audio, video and data communication is enabled through stable frequency of the broadband.
• Optimized insulation design for low attenuation
• Low transmission loss due to high foam
• Flexibility and low return loss due to uniform creases



Main functions

• Low attenuation, low VSWR communication lines
• Fire-resistant, LSZH (Low Smoke Zero Halogen) properties are feasible (upon request)
• No harmful heavy metals (RoHS compliance)
  -  RoHS: Restriction of Hazardous Substance
