RF Feeder System - MIMO Leaky Cables
Model Name
-
Series
Telecommunication
Data
-
Manufacturer information
provider logo
LS CABLE & SYSTEM

Industrial special cable and Industrial material manufacturer, Underwater cable, Superconducting cable, Ultra high pressure cable, Communication cable and more

Problem with product info?
Update request
Manufacturer
LS CABLE & SYSTEM
Brand
-
SKU
48221
Product Name
RF Feeder System - MIMO Leaky Cables
Model Name
-
Size
-
Weight
-
Product Details

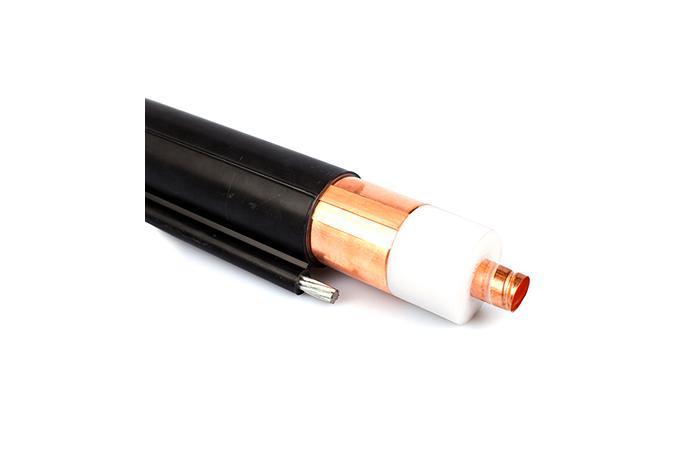

Generally, leaky coaxial cables are used for underground applications or tunnels. The external conductor is processed to create a signal leakage slot so the cable functions as the antenna.
In addition to antenna functions, these cables are optimized for mobile communications services or LTE-R where throughput speed is important. One line of routing realizes the MIMO(Multi In, Multi Out) function, reducing CAPEX such as construction and material costs.



Types and purposes

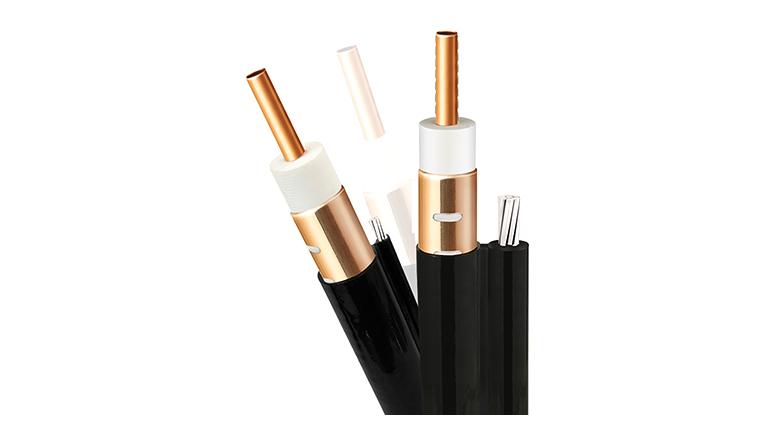

1-1/4” MIMO Leaky Cables
  - Exclusive for LTE-R (700MHz) (FM, DMB, LTE-R)
  - Exclusive for mobile communication services (800MHz~2.3GHz)

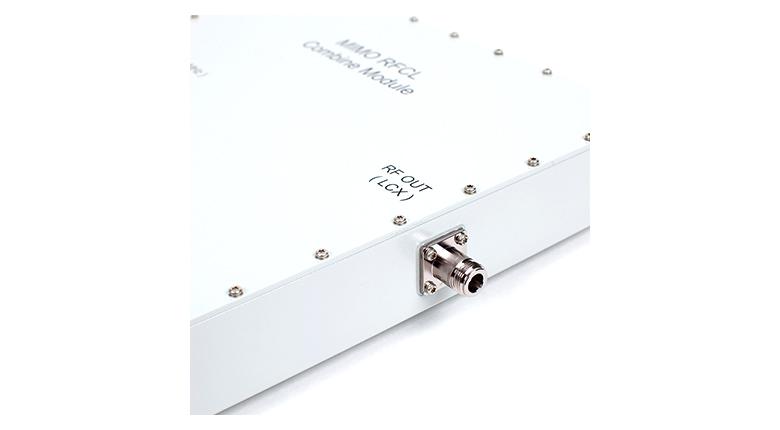

Hybrid Combiner
  - Bi-directional power feed components for MIMO functions



Benefits

Using cable antennas with dual polarized structure for MIMO functions, and bi-directional power feed hybrid combiner, they are optimized for environments requiring large capacity signals at high speed, such as LTE.

• One line of routing realizes the MIMO function, reducing construction and material costs
• Hybrid combiner with isolator to secure stability and MIMO performance
• Bi-directional feed realizes equal MIMO performance as space-wave antenna method



Main functions

• One line of routing realizes the MIMO function improving throughput speed and RSSI
• Design of damping and combined loss properties according to main frequencies such as 75MHz~900MHz and 800MHz~2.3GHz is feasible
• 90° or 180° slots according to installation location (tunnel wall, central pillar)
