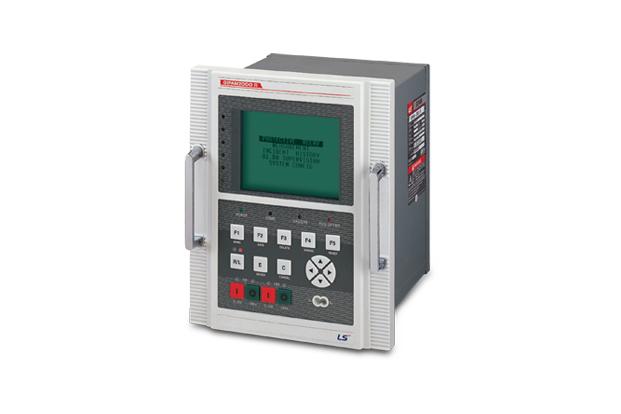

product Image
Protection
Model Name
GIPAM2000
Series
Protection/Measurement/Meter (Device)
Data
Catalog-LS ELECTRIC-Digital Protection Measurement
Manufacturer information
provider logo
LS ELECTRIC

Smart Power Solution, Low Voltage, Smart Automation Solution, PLC, Smart Railway Solution, Signaling System and more

Problem with product info?
Update request
Manufacturer
LS ELECTRIC
Brand
-
SKU
133000
Product Name
Protection
Model Name
GIPAM2000
Size
-
Weight
-
Product Details

GIPAM2000

Standard multifunction digital power protection monitoring device with various protection and measurement elements - Mono graphic LCD type.



Features

Protection Function

ㆍVarious protection factor (22 protection factors)

ㆍEvent and fault recording (MAX 800 recording)

ㆍVarious measurements and monitoring functions (20 measurements)

ㆍTrip logic and PLC function

ㆍMimic diagram function

ㆍAdvanced power quality measurement (2~13rd Harmonic)

ㆍSelect & Check Before Operating (CBO) functions

ㆍVector diagram

ㆍTime characteristic Curve

ㆍTrip Circuit Supervision (TCS) & Trip Relay Supervision (TRS) Function

ㆍSequence of Events (SOE)

ㆍPT(VT) failure

ㆍHarmonic spectrum

ㆍInput/output points monitoring and control function



Convenience Function

ㆍEasy connecting to PC manager



Communication Function

ㆍVarious communication compatibilities

ㆍIEC61850 communication



Protection factor

Type Usage Protection
GIPAM2000FI Feeder/Incomming OCR (50/51) ,OCGR (50/51N) ,SGR (67G) ,DGR (67N) ,OVR (59) ,OVGR (64G)3) ,UVR (27-1) ,R-UVR (27R) ,
NSOVR (47N) ,POR(47P) ,Reclosing (79) ,Lock-out (86)2)
GIPAM2000M Motor OCR (50/51) ,OCGR (50/51N) ,SGR (67G) ,DGR (67N) ,NSOCR (46) ,POR (47P) ,NSOVR (47N) ,THR (49),
UVR (27-1) ,48/51LR ,Lock-out (86)2)
GIPAM2000T Transformer DFR (87T) ,OCR (50/51-1) ,OCR (50/51-2) ,OCGR (50/51N-1) ,OCGR (50/51N-2) ,Inrush Detector (68)1) ,Lock-out (86)2)

Note

1. DFR (87T) contains Inrush Detector (68).

2. Lock-out (86) can be configured as a PLC Trip Logic

3. OVGR is not connected to the CB_OFF (TRIP circuit) . ( Modify the LOGIC if necessary )



Specification

Rating Specification
Wiring   1P3W, 3P3W, 3P4W
Input Frequency  60Hz/50Hz
Voltage PT  110V
GPT  190V,190/ √3V
Current CT  5A (Option : 1A)
ZCT  200/1.5mA
Control Voltage   AC/DC 110V
Power Consumption   Normal : Max. 30W, Operating : Max. 70W
Burden PT  Max. 0.5VA
CT  Max. 1.0VA
Input Contact 6EA   Digital Input : AC/DC 110V/125V
Output Contact 2EA for Power  AC 250V 16A / DC 30V 16A, Resistive Load 4000VA, 480W
10EA for Alarm  AC 250V 5A / DC 30V 5A, Resistive Load 1250VA, 150W
Tolerance rate Operating value ±5% or 0.01In(Vn)
Operating time ±5% or 20ms
Insulation Resistance   Over DC 500V 100㏁
Insulation Voltage   AC 2kV (1kV) / for 1 min
Impulse Voltage   AC 5kV (3kV) Over 1.2 × 50㎲
Overload Withstand Current circuit  3 In for 3 hours
 20 In for 2 seconds
Voltage circuit  1.15 Vn for 3 hours
Fast Transient Disturbance   Power Input 4kV
 Other Input 2kV (Analog input 1kV)
ESD (Electrostatic Discharge)   Air 8kV
 Contact 6kV
Operation temperature   -10℃ ~ 55℃
Storage Temperature   -25℃ ~ 70℃
Humidity   Within 80% RH, no condensation
Altitude   1000m and below
Others   Non-impact place
 Non-air pollution place
Standard   IEC 60255, IEC 61000-4, KEMC 1120
Weight 8.6kg
